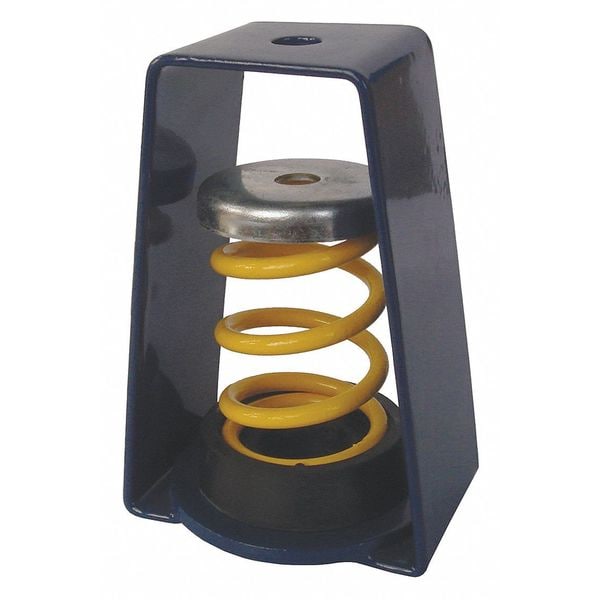

Hanger Vibration Isolator, 55 to 76 lb.
| Item | Hanger-Mount Vibration Isolator |
|---|---|
| Isolator Type | Spring |
| Capacity Range | 55 to 76 lb |
| Deflection Range | 3/4 to 1.02 in |
| Max. Rod Dia. | 3/8 in |
| Lower Rod Penetration | 3-1/2 in |
| Spring Color | Black |
| Height | 4-1/4 in |
| Width | 2-7/8 in |
| Color Mark | Not Applicable |
| Rated Deflection - Maximum | 1.02 in |
| Overall Height | 4-1/4 in |
| Operating Temperature - Maximum | 176 deg F |
| Rated Capacity - Maximum | 76 lb |
| Rod Diameter - Maximum | 3/8 in |
| Rated Capacity - Minimum | 55 lb |
| Overall Depth | 4-1/4 in |
| Durometer | Not Applicable |
| Overall Width | 2-7/8 in |
| Load Sideways Shear - Maximum | Not Applicable |
| Isolator Material | Spring |
| Includes Spring | Spring Included |
| Rated Deflection - Minimum | 3/4 in |
| Load Downward Compression - Maximum | 76 lbf |
| Operating Temperature - Minimum | -4 deg F |
| Bushing Material | Spring |
| Package Quantity | 1 |
