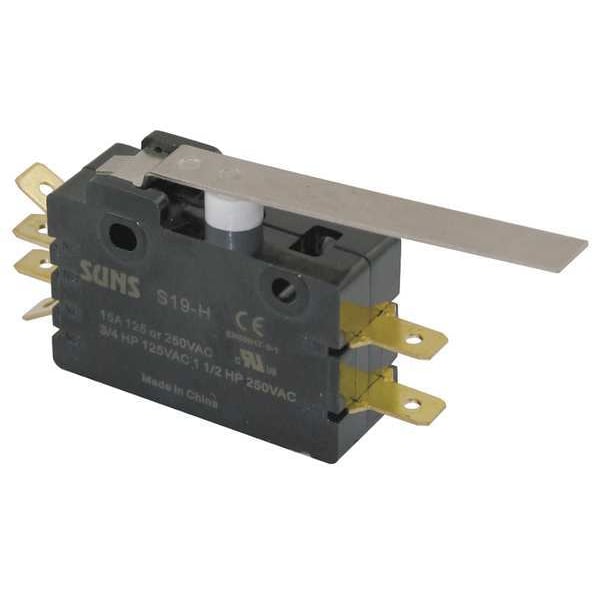

Interruptor de Acción Rápida Industrial, Bisagra, Actuador de Palanca, DPDT, Calificación de Contacto de 15A @ 240V AC.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever, Hinge |
| AC Contact Rating - Snap Action Switch | 15 A @ 240 V |
| Contact Form- Switches | DPDT |
| Lever Actuator Length - Snap Action Switch | 1-1/2 in |
| Height - Snap Action Switch | 1.12 in |
| Width - Snap Action Switch | 1.82 in |
| Depth - Snap Action Switch | 0.64 in |
| Current Rating | 15a |
| Height | 1-1/8 in |
| Operating Force | 7.48 oz |
| Voltage Rating | 125/250VAC |
| Actuator Length | 1-1/2 in |
| Electrical Connection - Snap Action Switch | Quick Connect |
| Series | S |
| Differential Travel | 0.093 in |
| Depth | 0.64 in |
| Type of Actuator | Hinge Lever |
| Standards | CE, CSA, UL Listed |
| Mounting Dimension | 1.00" Centers |
| Over Travel | 0.187 in |
| Terminal Type | 1/4" Quick Connect |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Length | 1.823 in |
| Operating Temp. Range | -40 Degrees to 221 Degrees F |
| Watertight - Snap Action Switch | No |
| Release Force | 1.4 ozf |
| Contact Form | 2NO/2NC |
| Max. Pretravel | 0.275 in |
| Housing Material | Phenolic Case and Cover |
| AC Contact Rating | 15 A @ 240 V |
| Pretravel | 0.275 in |
| Overtravel | 0.187 in |
| Actuator Style | Hinge Lever |
| Body Height | 1.12 in |
| Overall Depth | 0.64 in |
| Body Width | 1.82 in |
| Operating Temperature - Minimum | -40 deg F |
| Body Material | Phenolic |
| Differential Travel - Minimum | Not Applicable |
| Operating Force - Maximum | 7.48 ozf |
| Center Mounting Hole Distance | 1 in |
| Operating Temperature - Maximum | 221 deg F |
| Electrical Connection | Quick Connect |
| Body Depth | 0.64 in |
| Operating Force - Minimum | Not Applicable |
| Differential Travel - Maximum | 0.093 in |
| Overall Height | 1.12 in |
| Lever Actuator Length | 1-1/2 in |
| Overall Width | 1.82 in |
| Package Quantity | 1 |
