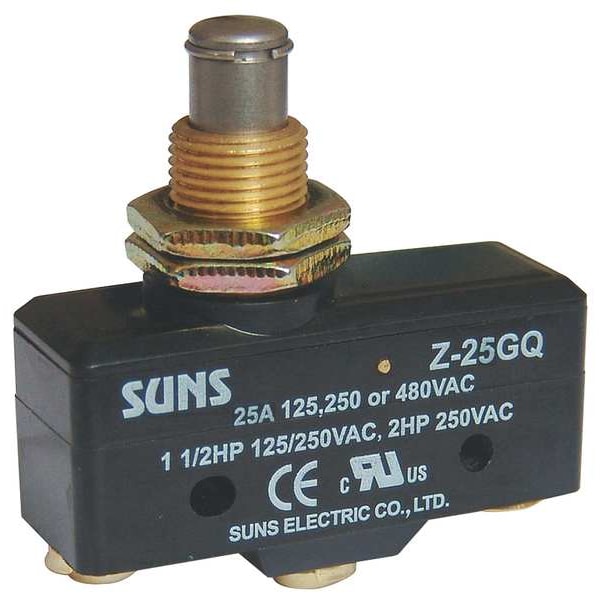

Interruptor de acción rápida industrial, montaje en panel, actuador de pistón, SPDT, clasificación de contacto de 25A @ 480V CA.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Panel Mount |
| AC Contact Rating - Snap Action Switch | 25 A @ 480 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 1.28 in |
| Width - Snap Action Switch | 1.94 in |
| Watertight - Snap Action Switch | No |
| Over Travel | 0.219 in |
| Height | 1.28 in |
| Type of Actuator | Panel Mount Plunger |
| Series | Z |
| Release Force | 10 ozf |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Electrical Connection - Snap Action Switch | Screw |
| Actuator Length | 1.94 in |
| Mounting Dimension | 1.00" Centers |
| Terminal Type | Screw |
| Differential Travel | 0.008 in |
| Max. Pretravel | 0.051 in |
| Voltage Rating | 125/250/480VAC |
| Current Rating | 25 A |
| Operating Temp. Range | -13 Degrees to 185 Degrees F |
| Housing Material | Phenolic Case and Cover |
| Operating Force | 22.03 oz |
| Length | 1.94 in |
| Contact Form | 1NO/1NC |
| AC Contact Rating | 25 A @ 480 V |
| Differential Travel - Maximum | 0.008 in |
| Operating Temperature - Minimum | -13 deg F |
| Operating Force - Minimum | Not Applicable |
| Body Material | Phenolic |
| Lever Actuator Length | Not Applicable |
| Overall Width | 1.94 in |
| Pretravel | 0.051 in |
| Differential Travel - Minimum | Not Applicable |
| Center Mounting Hole Distance | 1 in |
| Overall Height | 1.28 in |
| Operating Temperature - Maximum | 185 deg F |
| Actuator Style | Plunger |
| Operating Force - Maximum | 22.03 ozf |
| Overtravel | 0.219 in |
| Body Height | 1.28 in |
| Body Width | 1.94 in |
| Electrical Connection | Screw |
| Package Quantity | 1 |
