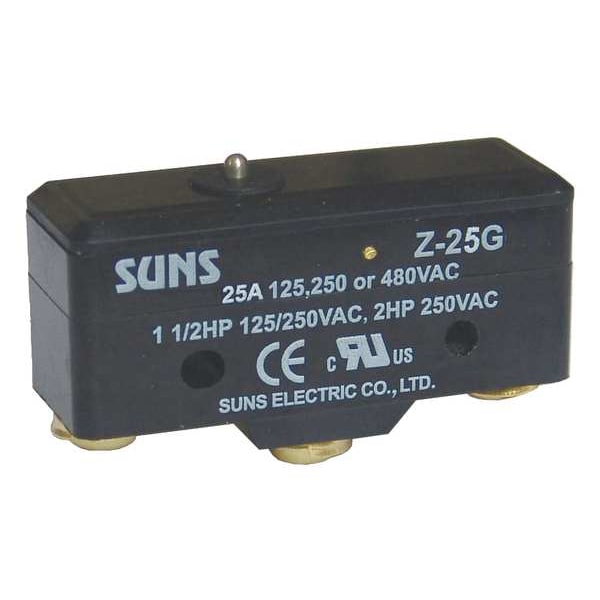

Interruptor de acción rápida industrial, pasador, actuador de émbolo, SPDT, 25A @ 480V AC de clasificación de contacto.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Pin |
| AC Contact Rating - Snap Action Switch | 25 A @ 480 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 0.64 in |
| Width - Snap Action Switch | 1.82 in |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Height | 0.64 in |
| Contact Form | 1NO/1NC |
| Operating Force | 14.98 oz |
| Housing Material | Phenolic Case and Cover |
| Voltage Rating | 125/250/480VAC |
| Length | 1.823 in |
| Terminal Type | Screw |
| Watertight - Snap Action Switch | No |
| Release Force | 3 ozf |
| Type of Actuator | Pin Plunger |
| Over Travel | 0.1 in |
| Actuator Length | 1.82 in |
| Max. Pretravel | 0.05 in |
| Electrical Connection - Snap Action Switch | Screw |
| Mounting Dimension | 1.00" Centers |
| Operating Temp. Range | -40 Degrees to 221 Degrees F |
| Series | Z |
| Differential Travel | 0.015 in |
| Current Rating | 25 A |
| Shop By | Closeouts |
| AC Contact Rating | 25 A @ 480 V |
| Lever Actuator Length | Not Applicable |
| Body Material | Phenolic |
| Operating Temperature - Maximum | 221 deg F |
| Operating Force - Maximum | 14.98 ozf |
| Electrical Connection | Screw |
| Differential Travel - Minimum | Not Applicable |
| Pretravel | 0.05 in |
| Differential Travel - Maximum | 0.015 in |
| Overtravel | 0.1 in |
| Body Height | 0.64 in |
| Overall Height | 0.64 in |
| Overall Width | 1.82 in |
| Body Width | 1.82 in |
| Actuator Style | Plunger |
| Center Mounting Hole Distance | 1 in |
| Operating Temperature - Minimum | -40 deg F |
| Operating Force - Minimum | Not Applicable |
| Package Quantity | 1 |
