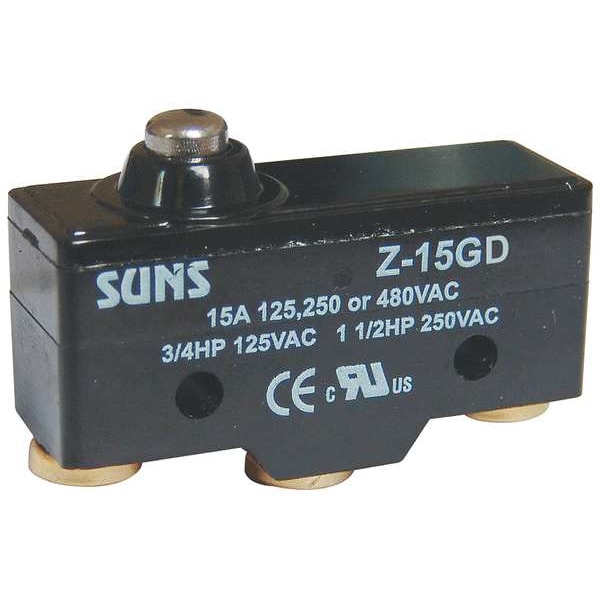

Interruptor de acción rápida industrial, émbolo, actuador corto, SPDT, capacidad de contacto de 15A @ 480V AC.
| Item | Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger, Short |
| AC Contact Rating - Snap Action Switch | 15 A @ 480 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 1.23 in |
| Width - Snap Action Switch | 1.94 in |
| Over Travel | 0.063 in |
| Contact Form | SPDT |
| Max. Pretravel | 0.016 in |
| Voltage Rating | 125/250/480VAC |
| Mounting Dimension - Snap Action Switch | 1 in (Centers) |
| Length | 1.94 in |
| Electrical Connection - Snap Action Switch | Screw |
| Watertight - Snap Action Switch | No |
| Operating Temp. Range | -13 Degrees to 185 Degrees F |
| Terminal Type | Screw |
| Current Rating | 15a |
| Mounting Dimension | 1.00" Centers |
| Operating Force | 12.34 oz |
| Release Force | 4.02 ozf |
| Housing Material | Phenolic Case and Cover |
| Series | Microswitch |
| Height | 1.23 in |
| Differential Travel | 0.002 in |
| Actuator Length | 1.94 in |
| Type of Actuator | Short Spring Plunger |
| Standards | cRUus Component Recognized, CE |
| Includes | Not Applicable |
| AC Contact Rating | 15 A @ 480 V |
| DC Contact Rating | 0.5A @ 250 V |
| Actuator Style | Plunger |
| Electrical Connection | Screw |
| Overall Height | 1.23 in |
| Resistance Properties | Non-Magnetic |
| Body Width | 1.94 in |
| Differential Travel - Minimum | Not Applicable |
| Roller Diameter | Not Applicable |
| Overtravel | 0.063 in |
| Lever Actuator Length | Not Applicable |
| Operating Temperature - Maximum | 185 deg F |
| Mounting Hole Diameter | 3/16 in |
| Center Mounting Hole Distance | 1 in |
| Roller Position | Not Applicable |
| Operating Force - Maximum | 3.43 N |
| Overall Width | 1.94 in |
| Differential Travel - Maximum | 0.05 mm |
| Roller Width | Not Applicable |
| Operating Force - Minimum | Not Applicable |
| Manufacturer Warranty Length | 1 yr |
| Operating Temperature - Minimum | -13 deg F |
| Pretravel | 0.016 in |
| Overall Depth | 0.69 in |
| Roller Material | Not Applicable |
| Body Height | 1.23 in |
| Roller Adjustability | Not Applicable |
| Body Material | Phenolic |
| Body Depth | 0.69 in |
| Package Quantity | 1 |
