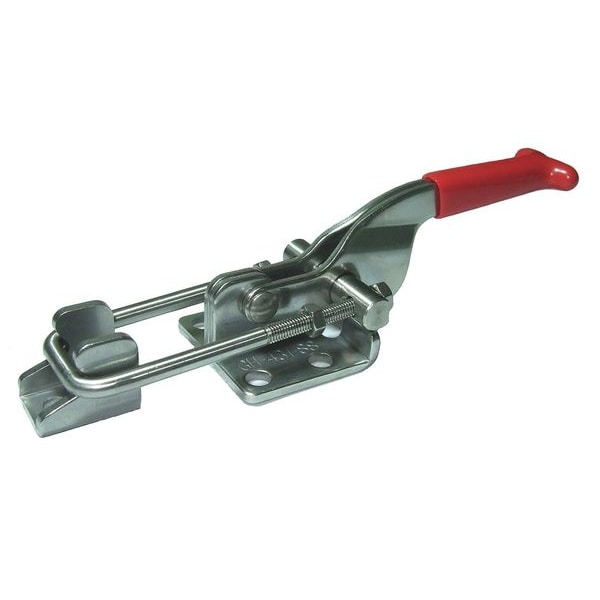

Latch Clamp, SS, Horiz, 2000 Lbs, 2.91 In
| Item | Latch Clamp |
|---|---|
| Type | Horizontal Handle Hold Down, SS |
| Holding Capacity (Lb.) | 2,000 |
| Overall Height (In.) | 2.91 |
| Body Material | Stainless Steel |
| Latch | 0.92 |
| Overall Length (In.) | 8.39 |
| Spindle Material | Not Applicable |
| Height Under Arm (In.) | 0.92 |
| Includes | Dipped Vinyl Grip, Latch Plate |
| Base Mounting Centers (In.) | 1.63 x 1-1/2 |
| Handle | Vinyl Dipped |
| Thread Size | M8 |
| Arm | U-Shaped |
| Adjustable Range | 0 to 0.76 |
| Dia. (In.) | 0.33 |
| Application | Assembly, Closures for doors, lids, covers, Molding |
| Tip Material | Not Applicable |
| Overall Length | 8.62 in |
| Fastener Thread Size | M8 |
| Overall Width | 2.12 in |
| Mounting Holes Center to Center - Short Side | 1-1/2 in |
| Recommended Latch Plate Manufacturer Model Number | GH-40341-LPSS |
| Arm Length | Not Applicable |
| Includes Locking Handle | No |
| Reflectivity | Nonreflective |
| Height Under Arm | 2.2 in |
| Handle Material | Plastic |
| Handle Orientation | Horizontal |
| Drawing Movement With Thumb Control | Not Applicable |
| Hook Type | Horizontal U |
| Hook Adjustment - Maximum | 0.93 in |
| Spindle Thread Size | Not Applicable |
| Overall Depth | 3 in |
| Exerted Force : Applied Force - Pulling | Not Applicable |
| Handle Color | Red |
| Clamping Force | Not Applicable |
| Drawing Movement Without Thumb Control | 2-3/4 in |
| Base Mounting Style | Flange |
| Mounting Holes Center to Center - Long Side | 1.63 in |
| Requires Articulation | Yes |
| Includes Latch Plate | Yes |
| Tip Diameter | Not Applicable |
| Holding Capacity - Maximum | 2,000 lbf |
| Package Quantity | 1 |
