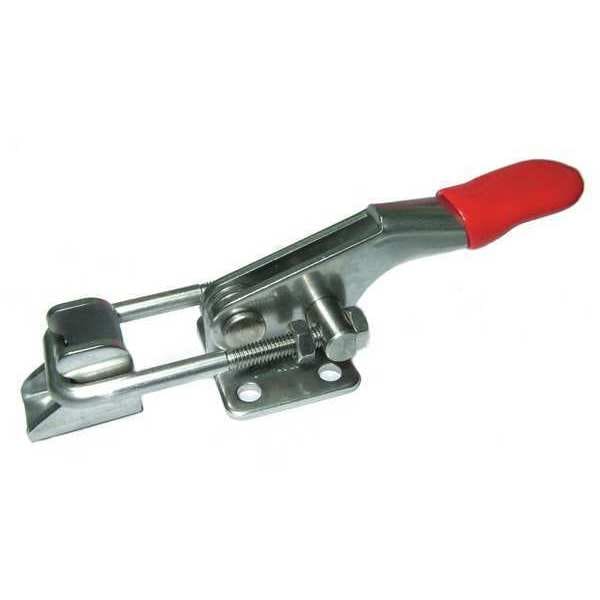

Latch Clamp, SS, Horiz, 360 Lbs, 1.15 In
| Item | Latch Clamp |
|---|---|
| Type | Horizontal Handle Hold Down, SS |
| Holding Capacity (Lb.) | 360 |
| Overall Height (In.) | 1.15 |
| Body Material | Stainless Steel |
| Overall Length (In.) | 4 |
| Latch | 0.47 |
| Spindle Material | Not Applicable |
| Height Under Arm (In.) | 0.47 |
| Thread Size | M4 |
| Dia. (In.) | 0.17 |
| Includes | Dipped Vinyl Grip, Latch Plate |
| Arm | U Bolt |
| Handle | Vinyl Dipped |
| Base Mounting Centers (In.) | 0.63 x 3/4 |
| Adjustable Range | 0 to 0.49 |
| Application | Assembly, Closures for doors, lids, covers, Molding |
| Drawing Movement With Thumb Control | Not Applicable |
| Spindle Thread Size | Not Applicable |
| Mounting Holes Center to Center - Long Side | 3/4 in |
| Tip Diameter | Not Applicable |
| Exerted Force : Applied Force - Pulling | Not Applicable |
| Drawing Movement Without Thumb Control | 1.18 in |
| Mounting Holes Center to Center - Short Side | 0.63 in |
| Clamping Force | Not Applicable |
| Base Mounting Style | Flange |
| Arm Length | Not Applicable |
| Hook Type | Horizontal U |
| Holding Capacity - Maximum | 360 lbf |
| Height Under Arm | 1 in |
| Overall Width | 1.11 in |
| Includes Latch Plate | Yes |
| Handle Orientation | Horizontal |
| Overall Depth | 1.23 in |
| Overall Length | 3.95 in |
| Handle Color | Red |
| Reflectivity | Nonreflective |
| Tip Material | Not Applicable |
| Recommended Latch Plate Manufacturer Model Number | GH-40323-LPSS |
| Handle Material | Plastic |
| Includes Locking Handle | No |
| Requires Articulation | Yes |
| Fastener Thread Size | M4 |
| Hook Adjustment - Maximum | 0.37 in |
| Package Quantity | 1 |
