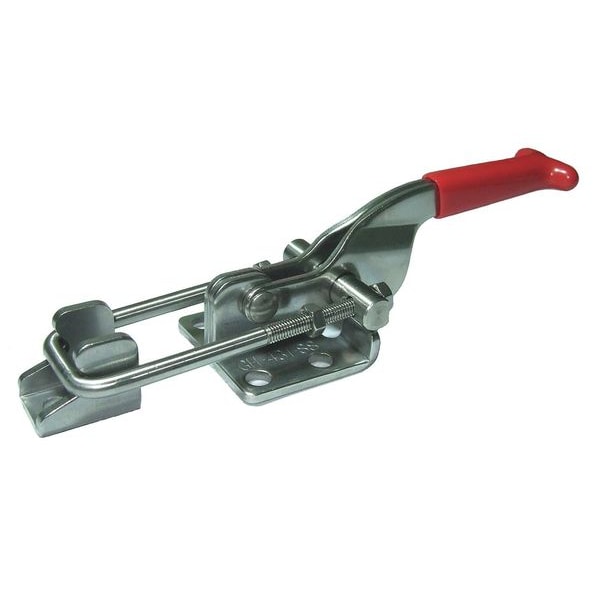

Latch Clamp, SS, Horiz, 700 Lbs, 1.63 In
| Item | Latch Clamp |
|---|---|
| Type | Horizontal Handle Hold Down, SS |
| Holding Capacity (Lb.) | 700 |
| Overall Height (In.) | 1.63 |
| Body Material | Stainless Steel |
| Overall Length (In.) | 6.28 |
| Latch | 0.53 |
| Spindle Material | Not Applicable |
| Height Under Arm (In.) | 0.53 |
| Dia. (In.) | 1/4 |
| Base Mounting Centers (In.) | 3/4 x 1-1/4 |
| Handle | Vinyl Dipped |
| Arm | U-Shaped |
| Thread Size | M5 |
| Includes | Dipped Vinyl Grip, Latch Plate |
| Adjustable Range | 0 to 0.59 |
| Application | Assembly, Closures for doors, lids, covers, Molding |
| Base Mounting Style | Flange |
| Tip Material | Not Applicable |
| Handle Material | Plastic |
| Hook Type | Horizontal U |
| Spindle Thread Size | Not Applicable |
| Overall Length | 6.39 in |
| Requires Articulation | Yes |
| Hook Adjustment - Maximum | 0.85 in |
| Fastener Thread Size | M6 |
| Arm Length | Not Applicable |
| Drawing Movement With Thumb Control | Not Applicable |
| Handle Orientation | Horizontal |
| Recommended Latch Plate Manufacturer Model Number | GH-431-LPSS |
| Height Under Arm | 1.28 in |
| Holding Capacity - Maximum | 700 lbf |
| Overall Width | 1-3/4 in |
| Includes Locking Handle | No |
| Includes Latch Plate | Yes |
| Overall Depth | 1.65 in |
| Mounting Holes Center to Center - Short Side | 3/4 in |
| Mounting Holes Center to Center - Long Side | 1-1/4 in |
| Drawing Movement Without Thumb Control | 1-3/4 in |
| Clamping Force | Not Applicable |
| Tip Diameter | Not Applicable |
| Reflectivity | Nonreflective |
| Exerted Force : Applied Force - Pulling | Not Applicable |
| Handle Color | Red |
| Package Quantity | 1 |
