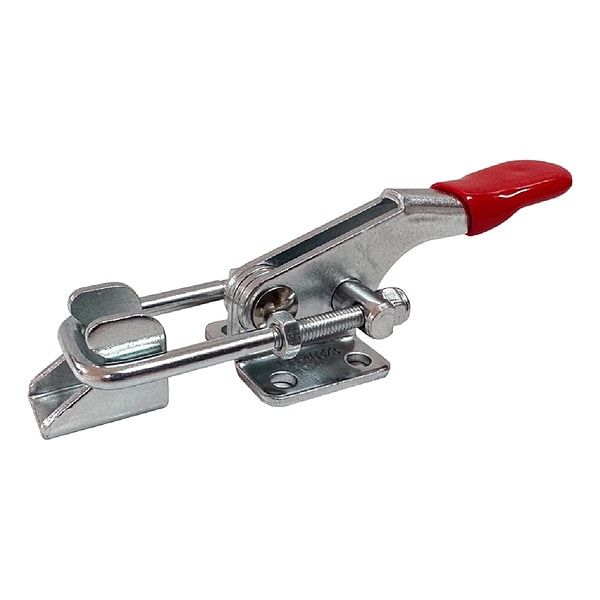

Latch Clamp, Steel, 3.95 in Overall L
| Item | Latch Clamp |
|---|---|
| Handle Material | Plastic |
| Body Material | Steel |
| Spindle Material | Not Applicable |
| Includes Latch Plate | Yes |
| Spindle Thread Size | Not Applicable |
| Handle Color | Red |
| Height Under Arm | Not Applicable |
| Overall Depth | 1.23 in |
| Drawing Movement Without Thumb Control | 1.18 in |
| Overall Length | 3.95 in |
| Exerted Force : Applied Force - Pulling | Not Applicable |
| Base Mounting Style | Flange |
| Clamping Force | Not Applicable |
| Fastener Thread Size | Not Applicable |
| Includes | Dipped Vinyl Grip, Latch Plate |
| Tip Material | Not Applicable |
| Exerted Force : Applied Force - Pushing | Not Applicable |
| Includes Locking Handle | No |
| Handle Orientation | Horizontal |
| Hook Type | Horizontal U |
| Application | Clamping During Assembly, General Fix, For Work Holding |
| Overall Width | 1.11 in |
| Hook Adjustment - Maximum | 0.37 in |
| Mounting Holes Center to Center - Short Side | 0.63 in |
| Recommended Latch Plate Manufacturer Model Number | GH-40323-LP |
| Requires Articulation | Yes |
| Holding Capacity - Maximum | 360 lbf |
| Reflectivity | Nonreflective |
| Mounting Holes Center to Center - Long Side | 3/4 in |
| Drawing Movement With Thumb Control | Not Applicable |
| Arm Length | Not Applicable |
| Tip Diameter | Not Applicable |
| Package Quantity | 1 |
