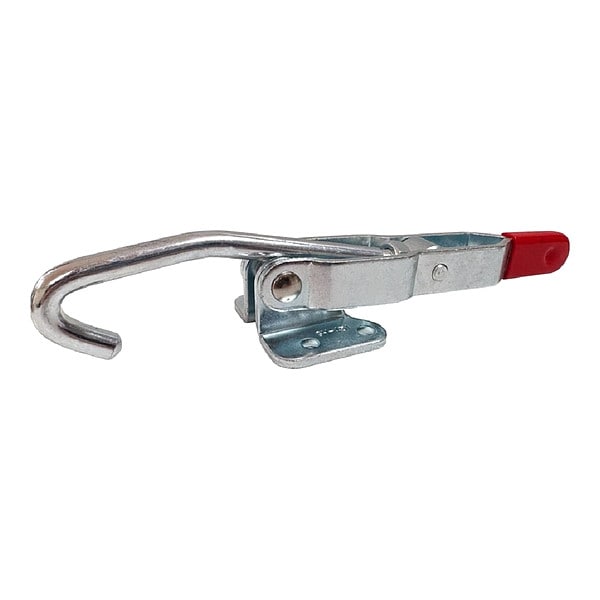

Latch Clamp, Steel, 8.32 in Overall L
| Item | Latch Clamp |
|---|---|
| Handle Material | Plastic |
| Handle Color | Red |
| Clamping Force | Not Applicable |
| Overall Depth | 1.46 in |
| Exerted Force : Applied Force - Pushing | Not Applicable |
| Recommended Latch Plate Manufacturer Model Number | Not Applicable |
| Height Under Arm | Not Applicable |
| Tip Diameter | Not Applicable |
| Handle Orientation | Horizontal |
| Drawing Movement With Thumb Control | Not Applicable |
| Drawing Movement Without Thumb Control | 3.93 in |
| Application | Clamping During Assembly, General Fix, For Work Holding |
| Arm Length | Not Applicable |
| Base Mounting Style | Flange |
| Hook Type | J |
| Exerted Force : Applied Force - Pulling | Not Applicable |
| Tip Material | Not Applicable |
| Overall Width | 1.94 in |
| Reflectivity | Nonreflective |
| Mounting Holes Center to Center - Short Side | 0.75 in |
| Hook Adjustment - Maximum | 0.49 in |
| Body Material | Steel |
| Spindle Thread Size | Not Applicable |
| Includes | Dipped Vinyl Grip |
| Includes Locking Handle | No |
| Holding Capacity - Maximum | 375 lbf |
| Fastener Thread Size | Not Applicable |
| Overall Length | 8.32 in |
| Spindle Material | Not Applicable |
| Requires Articulation | Yes |
| Mounting Holes Center to Center - Long Side | 1.37 in |
| Includes Latch Plate | No |
| Package Quantity | 1 |
