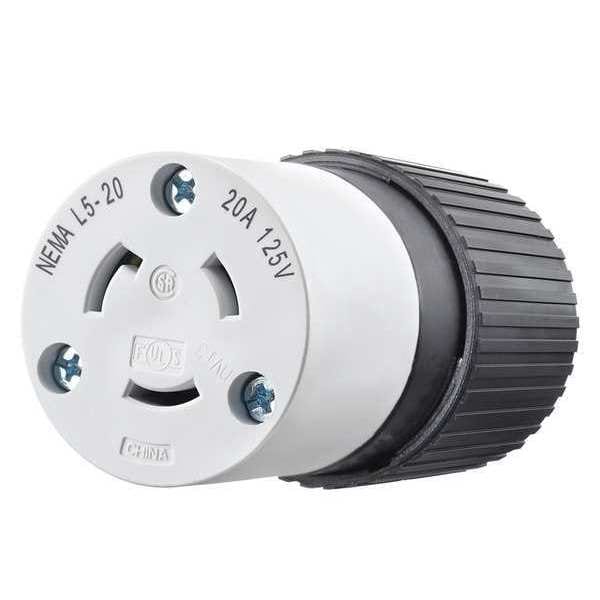

Locking Connector Black/White 125VAC 20A L5-20R
| Item | Locking Connector |
|---|---|
| Item - Plugs and Receptacles | Locking Connector |
| Amps - Plugs and Receptacles | 20 |
| NEMA Plug Configuration - Plugs and Receptacles | L5-20R |
| Amps | 20 |
| Voltage - Plugs and Receptacles | 125V AC |
| Voltage | 125VAC |
| Number of Poles | 2 |
| NEMA Configuration | L5-20 |
| Number of Wires | 3 |
| Wiring Style | Standard |
| Color - Plugs and Receptacles | Black, White |
| Color | Black, White |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Grade - Plugs and Receptacles | Industrial |
| IP Rating | IP20 |
| Standards | NEMA WD-1 and WD-5, UL 498 |
| Grade | Industrial |
| Cord Size | 0.3 to 0.655 in |
| Material | Nylon |
| Corrosion Resistant | No |
| Antimicrobial | No |
| Power Indicator | No |
| Phase | Single |
| Grounding | Grounded |
| Wire Connection Type | Screw Terminals |
| Voltage Rating | 125V AC |
| For Minimum Cable Diameter | 0.3 in |
| Power Indicating Light | No |
| Shrouded | No |
| For Maximum Cable Diameter | 0.655 in |
| Resistance Properties | Corrosion Resistant, Moisture Resistant |
| Compatible with Series | 70520NCB, 70520NCCR |
| Polarized | Yes |
| NEMA Receptacle Configuration | L5-20R |
| Housing Color | Black, White |
| Connection Orientation | Straight |
| Housing Material | Nylon |
| Market | Industrial |
| Midget Locking | No |
| Current Rating | 20 A |
| Cap Type | No Cap or Cover |
| Type | Connector Body |
| Nema Rating | L5-20R |
| Application | Heavy Duty Industrial |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Conductor Range | #14 AWG to #12 AWG |
| Display Size | Standard Sized Product |
| Material - Mounting Hardware | Cord Mounted |
| Temperature Rating | Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact. |
| Features | Face and body feature alignment keys for easy assembly; Amperage, voltage and NEMA configuration imprinted on face for easy identification; Impact/chemical resistant, toughened nylon construction; Internal “self-centering†Triple Gripper® cord grip with “radius teeth†design provides secure cord retention |
| Amperage Rating | 20 A |
| Height | 3.9 in |
| Connectivity | Screw Terminals |
| Wire Size | #18 AWG to #8 AWG |
| Item Type | 20A Triple Gripper Nylon Connector |
| Length | 2.13 in |
| Style | Internal Cord Clamp |
| Insulation | Insulated Body |
| Number Of Conductors | 3-Wire Grounding |
| Package Quantity | 1 |
