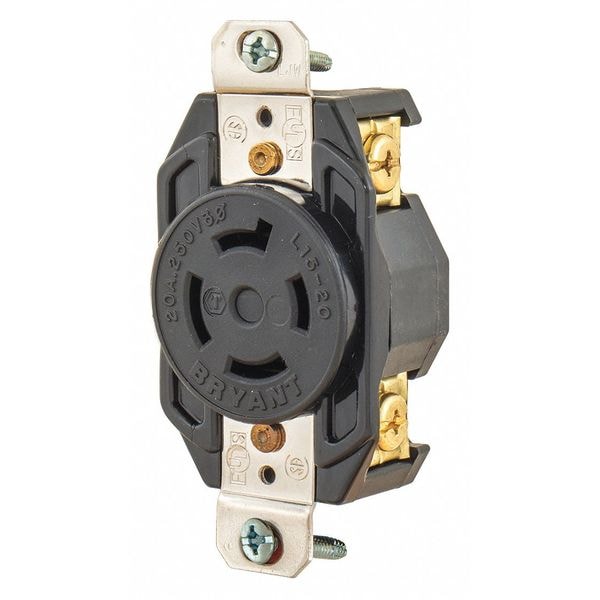

Locking Receptacle, Black, 250VAC, 3 HP, 20A
| Item | Locking Receptacle |
|---|---|
| NEMA Configuration | L15-20 |
| Voltage | 250V AC |
| Amps | 20 |
| Color | Black |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Phase | Three |
| Shrouded / Non-Shrouded | Non-Shrouded |
| Wiring Style | Standard |
| Material | Nylon |
| HP | 3.0 |
| Mounting Type | Flush Mount |
| Grade | Industrial |
| Standards | UL 498 |
| Includes Mounting Hardware | Yes |
| Resistance Properties | Corrosion Resistant |
| NEMA Receptacle Configuration | L15-20R |
| Maximum Wire Size | 8 AWG |
| Housing Material | Nylon |
| Wire Connection Type | Screw Terminals |
| Market | Industrial |
| For Environment | Dry |
| Shrouded | No |
| Current Rating | 20 A |
| Minimum Wire Size | 14 AWG |
| Horsepower Rating | 3 HP |
| Grounding | Grounded |
| Voltage Rating | 250V AC |
| For Location | Indoor |
| Includes | Mounting Hardware |
| Polarized | Yes |
| Contact Material | Copper Alloy |
| Mount Type | Flush |
| Housing Color | Black |
| Wire Size | #14 AWG to #8 AWG |
| Nema Rating | L15-20R |
| Amperage Rating | 20 A |
| Height | 1.14 in |
| Display Size | Standard Sized Product |
| Application | Extra Heavy Duty Industrial Specification Grade |
| Features | Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors; Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly; NEMA rating and configuration are molded into face for easy identification; One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention |
| Length | 3.28 in |
| Material - Mounting Hardware | Screw Mounting |
| Style | Single Receptacle |
| Type | Receptacle |
| Connectivity | Terminal Screws |
| Item Type | 20A Single Nylon Receptacle |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Width | 1.7 in |
| Package Quantity | 1 |
