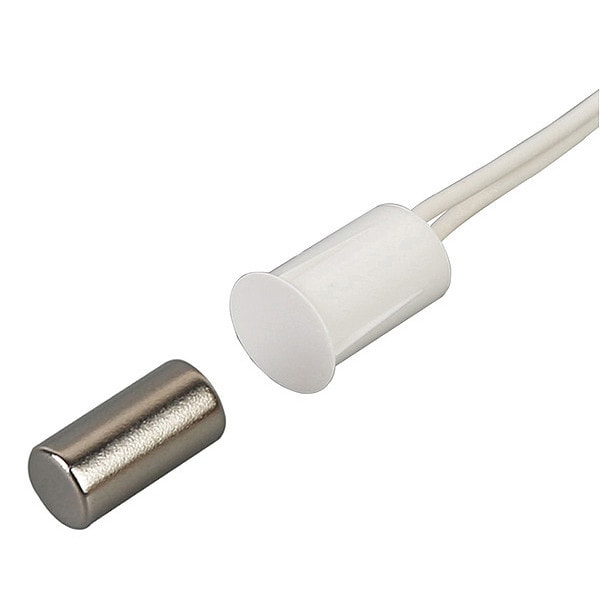

Magnetic Contact, Recessed Mount, Lead Size: No 22 AWG
| Item | Magnetic Contact |
|---|---|
| Type | Recessed Mount |
| For Use With | Windows and Doors |
| Material | Plastic |
| Includes | Mounting Hardware |
| Lead Length (In.) | 18 |
| Max. Gap Distance (In.) | 1-29/64 |
| Loop Configuration | Closed |
| Max. Current (Amps) | 0.5 |
| Depth (In.) | 7/16 |
| Package Quantity | 1 |
| Operating Temp. Range (F) | -15 to 160 |
| Length (In.) | 7/16 |
| Standards | No |
| Lead Size | #22 AWG |
| Width (In.) | 3/4 |
| Height (In.) | 3/8 |
| Max. Voltage | 100V DC/V AC |
| Electrical Configuration | Normally Open |
| Response Time (Sec.) | 0.5ms Max |
| Operating Temperature - Minimum | -15 deg F |
| Product Type | Magnetic Contact |
| Response Time | 0.5 ms Max |
| Lead Length | 18 in |
| Voltage - Maximum | 100V AC/DC |
| Current - Maximum | 0.5 A |
| Overall Depth | 7/16 in |
| Overall Length | 7/16 in |
| Operating Temperature - Maximum | 160 deg F |
| Gap Distance - Maximum | 1-29/64 in |
| Compatible Product Type | Doors, Windows |
| Overall Height | 3/8 in |
| Country of Origin (subject to change) | China |
