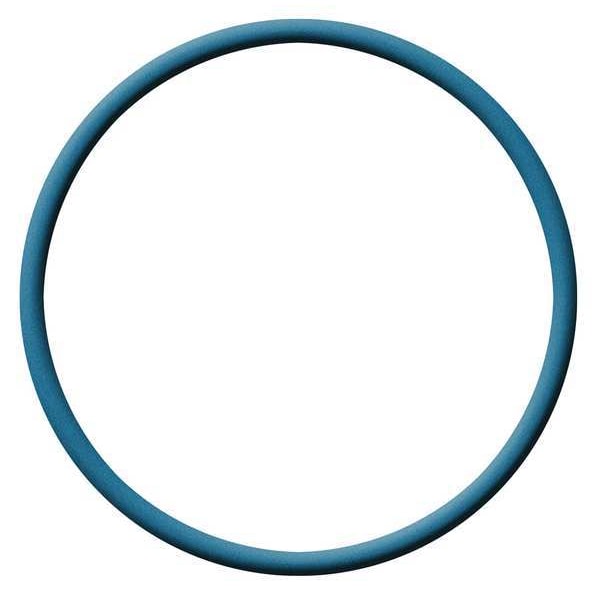

Metal Detectable FDA Viton O-Ring, Dash 268
| Item | O-Ring |
|---|---|
| Dash Number | 268 |
| System of Measurement | Inch |
| Material | Viton |
| Cross Section Shape | Round |
| Cross-Section Shape | Round |
| O-Ring Material | Viton |
| O-Ring Material Compatibility | Detergents, Water, Carbon Dioxide, Nitrogen, Silicone Grease, Hydraulic Oils, Mineral Oil, Vegetable Oils, Natural Gas, Fatty Acids, Gasoline, Kerosene, Lubricating Oils, Diesel Oil, Sulfuric Acid, Hydrochloric Acid, Ethanol, Bleach, Toluene |
| Durometer | 75A |
| Color | Blue |
| Nominal Inside Dia. | 8-1/2 in |
| Actual Inside Dia. | 8.484 in |
| Nominal Outside Dia. | 8-3/4 in |
| Actual Outside Dia. | 8.762 in |
| Durometer (Hardness) Rating | Standard |
| Application | Metal Detectable |
| Nominal Width | 1/8 in |
| Metal Detectable | Yes |
| Actual Width | 0.139 in |
| Temp. Range | -15° to 400° F |
| Meets/Exceeds | FDA |
| FDA Approved | Yes |
| Type | O-Ring |
| X-Ray Detectable | No |
| Grade | Metal Detectable |
| Properties | High Temperature, Metal Detectable, Resistant to Chemicals, Resistant to Oils, Resistant to Water, Resistant to Weather |
| Product Type | O-Ring |
| Inside Diameter - Nominal | 8-1/2 in |
| Outside Diameter - Nominal | 8-3/4 in |
| Width - Actual | 0.139 in |
| Inside Diameter - Actual | 8.484 in |
| Operating Temperature - Maximum | 400 deg F |
| Outside Diameter - Actual | 8.762 in |
| Operating Temperature - Minimum | -15 deg F |
| Resistance Properties | Chemical-Resistant, High Temperature-Resistant, Oil-Resistant, Water-Resistant |
| Cross-Section Width | 1/8 in |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
