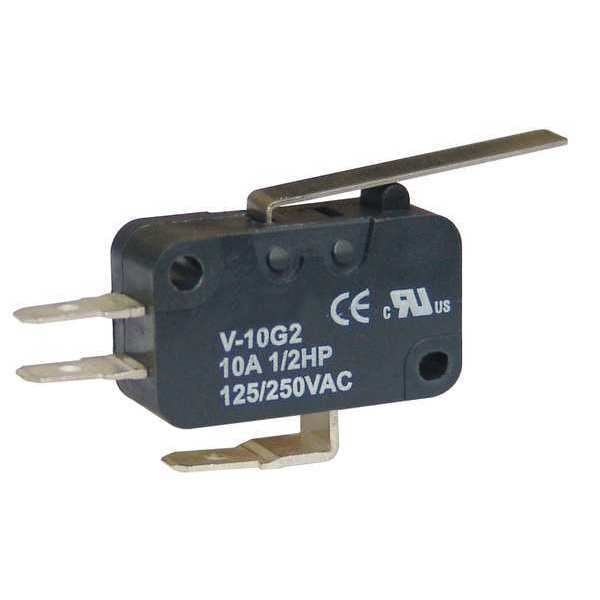

Interruptor de Acción Rápida Miniatura, Bisagra, Actuador de Palanca, SPDT, Calificación de Contacto de 10A @ 125/250V AC
| Item | Miniature Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever, Hinge |
| AC Contact Rating - Snap Action Switch | 10 A @ 125 V, 10 A @ 250 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | 1.07 in |
| Height - Snap Action Switch | 0.62 in |
| Width - Snap Action Switch | 1.09 in |
| Actuator Length | 1.07 in |
| Release Force | 0.25 ozf |
| Contact Form | SPDT |
| Voltage Rating | 125/250VAC |
| Differential Travel | 0.029 in |
| Mounting Dimension | 0.87" Centers |
| Height | 5/8 in |
| Operating Temp. Range | -40 Degrees to 85 Degrees C |
| Electrical Connection - Snap Action Switch | Quick Connect |
| Max. Pretravel | 1/8 in |
| Over Travel | 0.085 in |
| Terminal Type | 3/16" Quick Connect |
| Current Rating | 10 A |
| Type of Actuator | Hinge Lever |
| Mounting Dimension - Snap Action Switch | 0.87 in (Centers) |
| Watertight - Snap Action Switch | No |
| Housing Material | Thermoplastic Case and Cover |
| Operating Force | 1.31 oz |
| Length | 1.09 in |
| Series | V |
| AC Contact Rating | 10 A @ 125 V, 10 A @ 250 V |
| Overall Height | 0.62 in |
| Body Material | Thermoplastic |
| Body Height | 0.62 in |
| Operating Temperature - Minimum | -40 deg F |
| Lever Actuator Length | 1.07 in |
| Overall Width | 1.09 in |
| Actuator Style | Hinge Lever |
| Center Mounting Hole Distance | 0.87 in |
| Differential Travel - Maximum | 0.029 in |
| Differential Travel - Minimum | Not Applicable |
| Operating Temperature - Maximum | 185 deg F |
| Operating Force - Maximum | 1.31 ozf |
| Operating Force - Minimum | Not Applicable |
| Pretravel | 1/8 in |
| Overtravel | 0.085 in |
| Body Width | 1.09 in |
| Electrical Connection | Quick Connect |
| Package Quantity | 1 |
