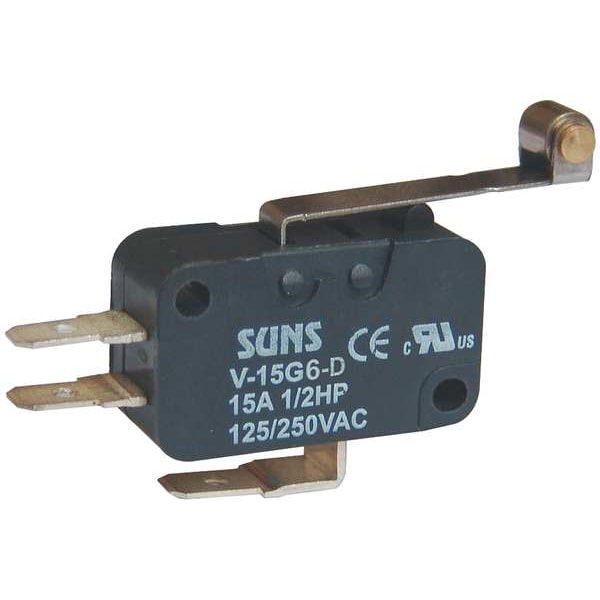

Interruptor de Acción Rápida en Miniatura, Palanca, Largo, Actuador de Rodillo, SPDT, Calificación de Contacto de 15A @ 240V AC
| Item | Miniature Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Lever, Roller, Long |
| AC Contact Rating - Snap Action Switch | 15 A @ 240 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | 1 in |
| Height - Snap Action Switch | 0.62 in |
| Width - Snap Action Switch | 1.09 in |
| Depth - Snap Action Switch | 0.41 in |
| Height | 5/8 in |
| Depth | 0.406 in |
| Over Travel | 0.087 in |
| Electrical Connection - Snap Action Switch | Quick Connect |
| Terminal Type | 3/16" Quick Connect |
| Current Rating | 15 A |
| Contact Form | 1NO/1NC |
| Differential Travel | 0.031 in |
| Housing Material | Thermoplastic Case and Cover |
| Watertight - Snap Action Switch | No |
| Standards | CE, CSA, UL Listed |
| Length | 1.09 in |
| Operating Temp. Range | -13 Degrees to 185 Degrees F |
| Mounting Dimension | 0.87" Centers |
| Actuator Length | 1 in |
| Max. Pretravel | 0.126 in |
| Type of Actuator | Long Roller Lever |
| Voltage Rating | 125/250VAC |
| Mounting Dimension - Snap Action Switch | 0.87 in (Centers) |
| Release Force | 1.16 ozf |
| Operating Force | 4.41 oz |
| Series | V |
| AC Contact Rating | 15 A @ 240 V |
| Differential Travel - Minimum | Not Applicable |
| Actuator Style | Roller Lever |
| Body Width | 1.09 in |
| Overtravel | 0.087 in |
| Body Height | 0.62 in |
| Lever Actuator Length | 1 in |
| Overall Height | 0.62 in |
| Overall Depth | 0.41 in |
| Pretravel | 0.126 in |
| Center Mounting Hole Distance | 0.87 in |
| Operating Temperature - Maximum | 185 deg F |
| Body Material | Thermoplastic |
| Operating Force - Minimum | Not Applicable |
| Operating Force - Maximum | 4.41 ozf |
| Operating Temperature - Minimum | -13 deg F |
| Differential Travel - Maximum | 0.031 in |
| Overall Width | 1.09 in |
| Body Depth | 0.41 in |
| Electrical Connection | Quick Connect |
| Package Quantity | 1 |
