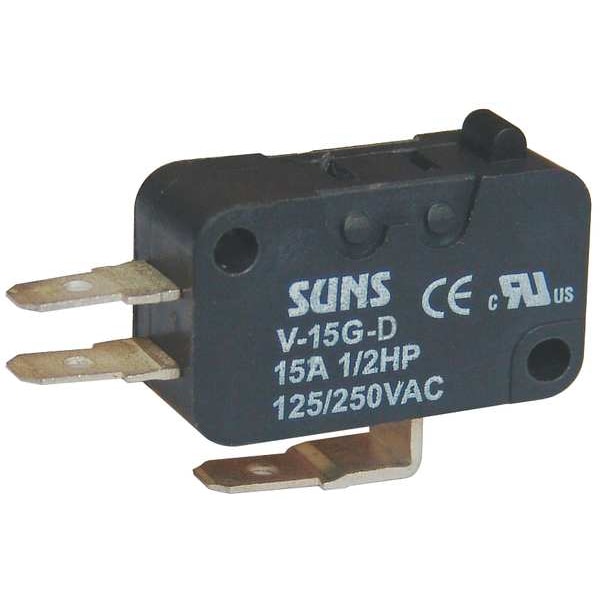

Interruptor de acción rápida en miniatura, con actuador de pistón, SPDT, clasificación de contacto de 15A @ 240V CA.
| Item | Miniature Snap Action Switch |
|---|---|
| Actuator Type - Snap Action Switch | Plunger |
| AC Contact Rating - Snap Action Switch | 15 A @ 240 V |
| Contact Form- Switches | SPDT |
| Lever Actuator Length - Snap Action Switch | Not Applicable |
| Height - Snap Action Switch | 0.62 in |
| Width - Snap Action Switch | 1.09 in |
| Voltage Rating | 125/250VAC |
| Current Rating | 15 A |
| Operating Force | 7.05 oz |
| Watertight - Snap Action Switch | No |
| Differential Travel | 0.012 in |
| Contact Form | 1NO/1NC |
| Length | 1.09 in |
| Height | 5/8 in |
| Type of Actuator | Button |
| Housing Material | Thermoplastic Case and Cover |
| Over Travel | 0.051 in |
| Terminal Type | 3/16" Quick Connect |
| Series | V |
| Mounting Dimension | 0.87" Centers |
| Release Force | 2.32 ozf |
| Max. Pretravel | 0.047 in |
| Operating Temp. Range | -13 Degrees to 185 Degrees F |
| Mounting Dimension - Snap Action Switch | 0.87 in (Centers) |
| Electrical Connection - Snap Action Switch | Quick Connect |
| Actuator Length | 1 in |
| AC Contact Rating | 15 A @ 240 V |
| Overall Height | 0.62 in |
| Body Height | 0.62 in |
| Operating Force - Minimum | Not Applicable |
| Operating Force - Maximum | 7.05 ozf |
| Pretravel | 0.047 in |
| Body Material | Thermoplastic |
| Body Width | 1.09 in |
| Differential Travel - Minimum | Not Applicable |
| Actuator Style | Plunger |
| Overtravel | 0.051 in |
| Lever Actuator Length | Not Applicable |
| Center Mounting Hole Distance | 0.87 in |
| Differential Travel - Maximum | 0.012 in |
| Electrical Connection | Quick Connect |
| Operating Temperature - Maximum | 185 deg F |
| Operating Temperature - Minimum | -13 deg F |
| Overall Width | 1.09 in |
| Package Quantity | 1 |
