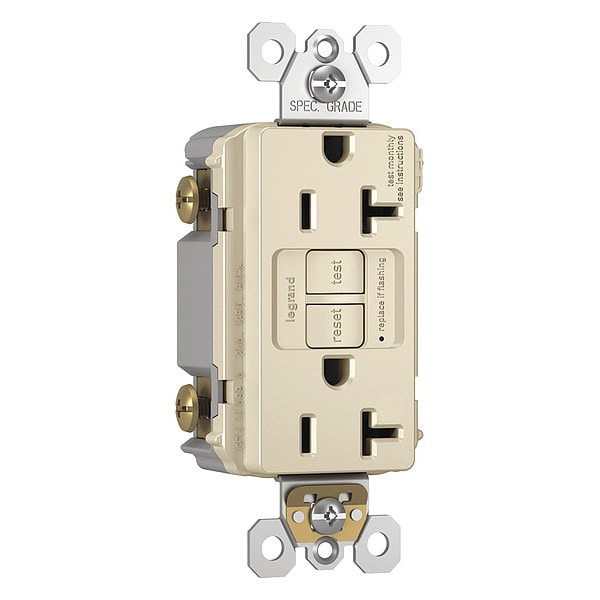

Entrada de corriente NEMA 20A 4-3/16" de alto x 1-3/4" de ancho x 1-1/8" de profundidad.
| Amps | 20 |
|---|---|
| Item | Power Inlet |
| Voltage | 125VAC |
| Receptacle Type | GFCI |
| Height | 4-3/16 in |
| Width | 1-3/4 in |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Voltage Rating | 125V AC |
| Reset Type | Automatic |
| Depth | 1-1/8 in |
| Standards | cULus Listed, FSUL, UL Listed |
| Number of Outlets | 2 |
| Indoor/Outdoor | Indoor |
| NEMA Receptacle Configuration | 5-20R |
| Color | Light Almond |
| Housing Color | Light Almond |
| Includes Mounting Hardware | Yes |
| Face Plate Height | 2.7 in |
| Face Plate Width | 1.7 in |
| Minimum Wire Size | 14 AWG |
| Grade | Federal Specification |
| Maximum Operating Temperature | 150.8 deg F |
| IEC Configuration | 309 |
| Wire Connection Type | Screw Terminals |
| Maximum Wire Size | 10 AWG |
| Compatible with Series | Radiant |
| UL 94 Flammability Rating | V-2 |
| Wiring Method | Back, Side |
| GFCI | Yes |
| Housing Material | Thermoplastic |
| Self Testing | Yes |
| Current Rating | 20 A |
| Resistance Properties | Tamper Resistant |
| For Location | Outdoor |
| Contact Material | Brass |
| Overall Depth | 1 in |
| Market | Commercial, Industrial, Residential |
| Maximum Surge Current | 6 mA |
| Minimum Operating Temperature | -31 deg F |
| Number of Gangs | 1 |
| Number of Wall Plates Included | 2 |
| Hub Type | Feed Through |
| For Environment | Institutional |
| Frequency Rating | 60 Hz |
| Environmental Conditions | 95% Humidity, UL 94 V2 |
| Number of Receptacles | 2 |
| Amperage | 20 A |
| Standard | cULus, UL Listed, FSUL |
| NEMA Rating | 20A |
| Application Sector | Commercial, Residential |
| Outlet Type | Tamper-Resistant, Indoor, GFCI |
| Interrupt Rating | 4.0 A |
| NEMA Configuration Code | 5-20R |
| Special Features | Spec Grade |
| Trip Range | 4 to 6 mA |
| Mounting Type | Box |
| Finish | Matte |
| Package Quantity | 1 |
