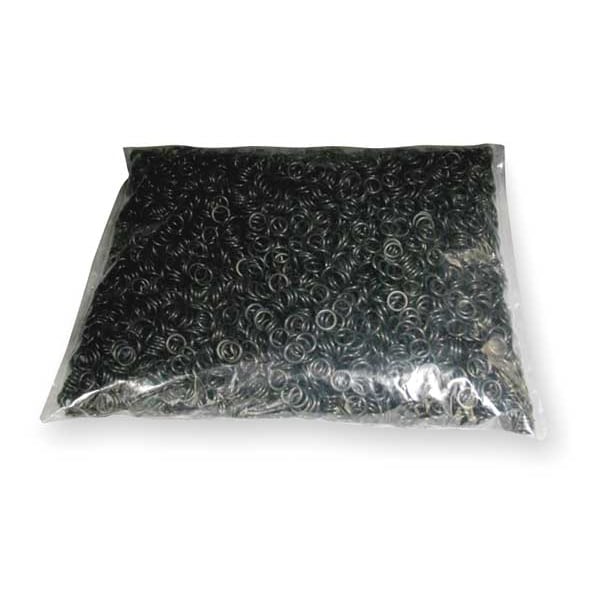

O-Ring, Dash 012, Buna N, 0.07 In., PK10000
| Dash Number | 012 |
|---|---|
| System of Measurement | Inch |
| Cross Section Shape | Round |
| Cross-Section Shape | Round |
| O-Ring Material | Buna-N |
| O-Ring Material Compatibility | Detergents, Water, Carbon Dioxide, Nitrogen, Silicone Grease, Mineral Oil, Vegetable Oils, Natural Gas, Lubricating Oils, Sulfuric Acid, Propane Gas, Hydraulic Oils, Fatty Acids, Gasoline, Kerosene, Diesel Oil, Animal Fats, Liquid, Anhydrous Ammonia |
| Durometer | 70A |
| Color | Black |
| Nominal Inside Dia. | 3/8 in |
| Actual Inside Dia. | 0.364 in |
| Nominal Outside Dia. | 1/2 in |
| Temp. Range | -40 Degrees to 250 Degrees F |
| Nominal Width | 1/16 in |
| Actual Outside Dia. | 0.504 in |
| X-Ray Dectectable | No |
| Item | O-Ring |
| FDA Approved | No |
| X-Ray Detectable | No |
| Durometer (Hardness) Rating | Medium Hard |
| Meets/Exceeds | ASTM D2000, SAE J200 |
| Metal Detectable | No |
| Actual Width | 0.07 in |
| Type | O-Ring |
| Product Type | O-Ring |
| Material | Buna-N |
| Cross-Section Width | 1/16 in |
| Inside Diameter - Nominal | 3/8 in |
| Width - Actual | 0.07 in |
| Operating Temperature - Maximum | 250 deg F |
| Outside Diameter - Nominal | 1/2 in |
| Inside Diameter - Actual | 0.364 in |
| Operating Temperature - Minimum | -40 deg F |
| Outside Diameter - Actual | 0.504 in |
| Standards | ASTM D2000, SAE J200 |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 10000 |
