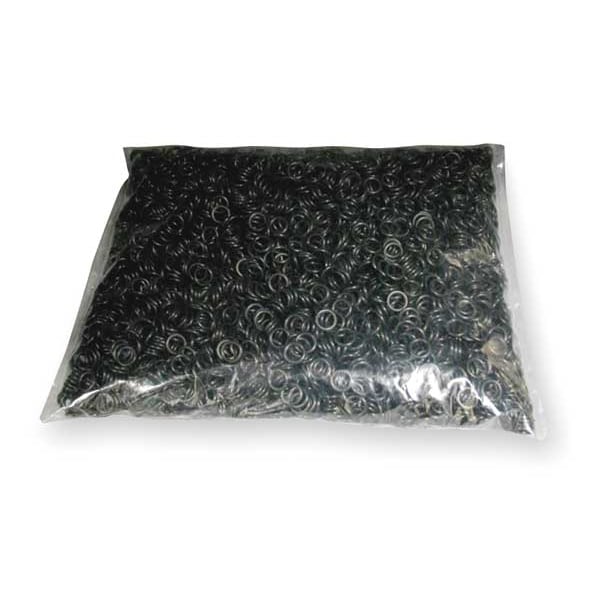

O-Ring, Dash 012, EPDM, 0.07 In., PK8000
| Dash Number | 012 |
|---|---|
| System of Measurement | Inch |
| Cross Section Shape | Round |
| Cross-Section Shape | Round |
| O-Ring Material | EPDM |
| O-Ring Material Compatibility | Detergents, Water, Carbon Dioxide, Nitrogen, Silicone Grease, Ethanol, Methanol, Bleach, Animal Fats, Acids, Sulfuric, Steam, Acetone, Ammonia, Anhydrous |
| Durometer | 70A |
| Color | Black |
| Nominal Inside Dia. | 3/8 in |
| Actual Inside Dia. | 0.364 in |
| Nominal Outside Dia. | 1/2 in |
| Durometer (Hardness) Rating | Medium Hard |
| Actual Width | 0.07 in |
| Temp. Range | -65 Degrees to 300 Degrees F |
| FDA Approved | No |
| X-Ray Detectable | No |
| Actual Outside Dia. | 0.504 in |
| X-Ray Dectectable | No |
| Metal Detectable | No |
| Meets/Exceeds | ASTM D2000, SAE J200 |
| Item | O-Ring |
| Nominal Width | 1/16 in |
| Type | O-Ring |
| Product Type | O-Ring |
| Material | EPDM |
| Operating Temperature - Maximum | 300 deg F |
| Operating Temperature - Minimum | -65 deg F |
| Outside Diameter - Actual | 0.504 in |
| Standards | ASTM D2000, SAE J200 |
| Width - Actual | 0.07 in |
| Outside Diameter - Nominal | 1/2 in |
| Cross-Section Width | 1/16 in |
| Inside Diameter - Actual | 0.364 in |
| Inside Diameter - Nominal | 3/8 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 8000 |
