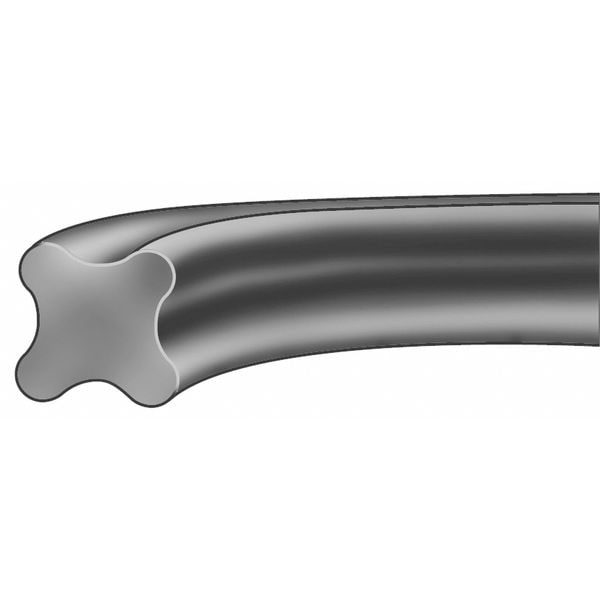

O-Ring, Dash 108, Viton, 0.1 In., PK25
| Dash Number | 108 |
|---|---|
| System of Measurement | Inch |
| Cross Section Shape | X |
| Cross-Section Shape | X-Ring |
| O-Ring Material | Viton |
| O-Ring Material Compatibility | Detergents, Water, Nitrogen, Silicone Grease, Mineral Oil, Vegetable Oils, Natural Gas, Lubricating Oils, Sulfuric Acid, Toluene, Propane Gas, Carbon Dioxide, Hydraulic Oils, Fatty Acids, Gasoline, Kerosene, Diesel Oil, Hydrochloric Acid, Bleach, Animal Fats, Liquid |
| Durometer | 75A |
| Color | Black |
| Nominal Inside Dia. | 1/4 in |
| Actual Inside Dia. | 0.237 in |
| Nominal Outside Dia. | 7/16 in |
| Nominal Width | 3/32 in |
| Temp. Range | -15 Degrees to 400 Degrees F |
| Durometer (Hardness) Rating | Medium Hard |
| X-Ray Detectable | No |
| X-Ray Dectectable | No |
| Actual Width | 0.103 in |
| Metal Detectable | No |
| FDA Approved | No |
| Item | O-Ring |
| Actual Outside Dia. | 0.443 in |
| Meets/Exceeds | ASTM D2000, SAE J200 |
| Type | O-Ring |
| Product Type | O-Ring |
| Material | Viton |
| Operating Temperature - Maximum | 400 deg F |
| Standards | ASTM D2000, SAE J200 |
| Inside Diameter - Nominal | 1/4 in |
| Cross-Section Width | 3/32 in |
| Operating Temperature - Minimum | -15 deg F |
| Outside Diameter - Nominal | 7/16 in |
| Outside Diameter - Actual | 0.443 in |
| Width - Actual | 0.103 in |
| Inside Diameter - Actual | 0.237 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 25 |
