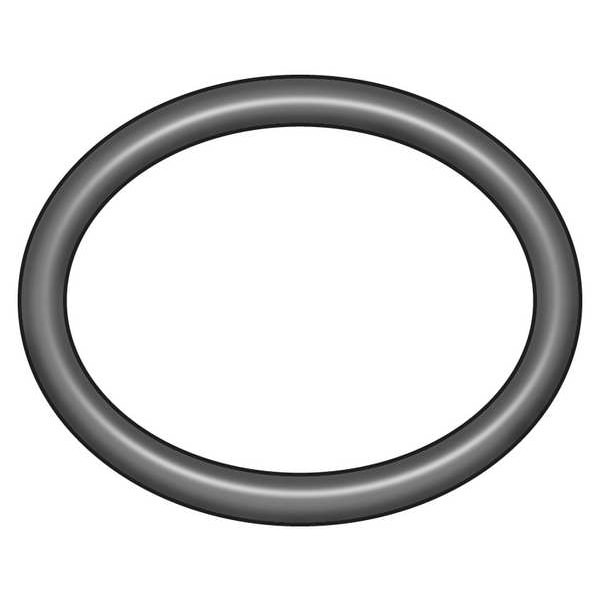

O-Ring, Dash 114, FEP, Viton Core, 0.1 In.
| Dash Number | 114 |
|---|---|
| System of Measurement | Inch |
| Cross Section Shape | Round |
| Cross-Section Shape | Round |
| O-Ring Material | FEP with Viton Core |
| O-Ring Material Compatibility | Detergents, Water, Carbon Dioxide, Nitrogen, Silicone Grease, Hydraulic Oils, Mineral Oil, Vegetable Oils, Natural Gas, Fatty Acids, Gasoline, Kerosene, Lubricating Oils, Diesel Oil, Hydrochloric Acid, Ethanol, Methanol, Bleach, Toluene, Animal Fats, Liquid, Propane Gas, Acids, Sulfuric, Steam, Acetone, Ammonia, Anhydrous |
| Durometer | 90A |
| Color | Clear with Black Core |
| Nominal Inside Dia. | 5/8 in |
| Actual Inside Dia. | 0.612 in |
| Nominal Outside Dia. | 13/16 in |
| Metal Detectable | No |
| Durometer (Hardness) Rating | Very Hard |
| X-Ray Dectectable | No |
| Actual Outside Dia. | 0.818 in |
| Nominal Width | 3/32 in |
| X-Ray Detectable | No |
| Actual Width | 0.103 in |
| Temp. Range | -15 Degrees to 400 Degrees F |
| FDA Approved | Yes |
| Item | O-Ring |
| Meets/Exceeds | ASTM D2116 |
| Type | O-Ring |
| Product Type | O-Ring |
| Material | FEP Core |
| Width - Actual | 0.103 in |
| Outside Diameter - Actual | 0.818 in |
| Inside Diameter - Nominal | 5/8 in |
| Cross-Section Width | 3/32 in |
| Standards | ASTM D2116 |
| Inside Diameter - Actual | 0.612 in |
| Operating Temperature - Maximum | 400 deg F |
| Outside Diameter - Nominal | 13/16 in |
| Operating Temperature - Minimum | -15 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
