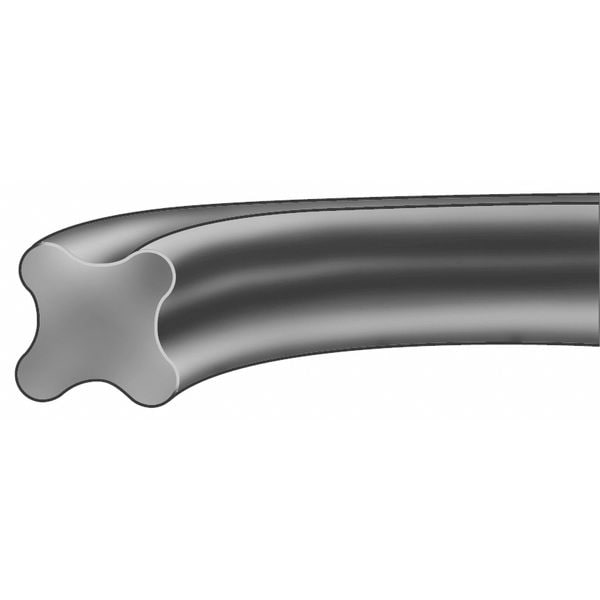

O-Ring, Dash 223, Viton, 0.13 In., PK5
| Dash Number | 223 |
|---|---|
| System of Measurement | Inch |
| Cross Section Shape | X |
| Cross-Section Shape | X-Ring |
| O-Ring Material | Viton |
| O-Ring Material Compatibility | Detergents, Water, Nitrogen, Silicone Grease, Mineral Oil, Vegetable Oils, Natural Gas, Lubricating Oils, Sulfuric Acid, Toluene, Propane Gas, Carbon Dioxide, Hydraulic Oils, Fatty Acids, Gasoline, Kerosene, Diesel Oil, Hydrochloric Acid, Bleach, Animal Fats, Liquid |
| Durometer | 75A |
| Color | Black |
| Nominal Inside Dia. | 1-5/8 in |
| Actual Inside Dia. | 1.609 in |
| Nominal Outside Dia. | 1-7/8 in |
| Actual Outside Dia. | 1.887 in |
| Temp. Range | -15 Degrees to 400 Degrees F |
| Metal Detectable | No |
| Nominal Width | 1/8 in |
| Item | O-Ring |
| FDA Approved | No |
| X-Ray Dectectable | No |
| X-Ray Detectable | No |
| Durometer (Hardness) Rating | Medium Hard |
| Meets/Exceeds | ASTM D2000, SAE J200 |
| Actual Width | 0.139 in |
| Type | O-Ring |
| Product Type | O-Ring |
| Material | Viton |
| Standards | ASTM D2000, SAE J200 |
| Inside Diameter - Nominal | 1-5/8 in |
| Cross-Section Width | 1/8 in |
| Inside Diameter - Actual | 1.609 in |
| Operating Temperature - Maximum | 400 deg F |
| Width - Actual | 0.139 in |
| Outside Diameter - Nominal | 1-7/8 in |
| Operating Temperature - Minimum | -15 deg F |
| Outside Diameter - Actual | 1.887 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 5 |
