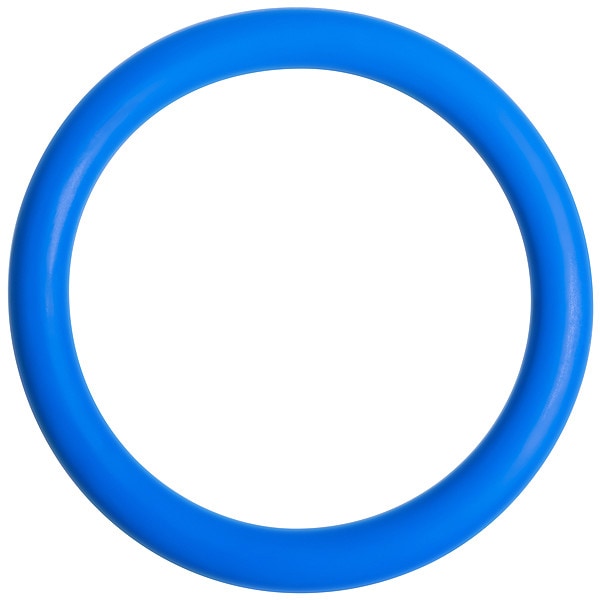

O-Ring, Fluorosilicone, Blue, PK5
| Dash Number | 206 |
|---|---|
| System of Measurement | Inch |
| Cross Section Shape | Round |
| Cross-Section Shape | Round |
| O-Ring Material | Fluorosilicone |
| O-Ring Material Compatibility | Detergents, Water, Carbon Dioxide, Nitrogen, Silicone Grease, Hydraulic Oils, Mineral Oil, Vegetable Oils, Natural Gas, Gasoline, Kerosene, Lubricating Oils, Diesel Oil, Sulfuric Acid, Hydrochloric Acid, Ethanol, Methanol, Bleach, Toluene |
| Durometer | 70A |
| Color | Blue |
| Nominal Inside Dia. | 1/2 in |
| Actual Inside Dia. | 0.4 in |
| Nominal Outside Dia. | 3/4 in |
| Actual Outside Dia. | 0.762 in |
| Actual Width | 0.139 in |
| Grade | Standard |
| Nominal Width | 1/8 in |
| Temp. Range | -80 Degrees to 480 Degrees F |
| FDA Approved | Yes |
| Metal Detectable | No |
| Durometer (Hardness) Rating | Medium Hard |
| X-Ray Detectable | No |
| Item | O-Ring |
| Properties | High Temperature, Resistant to Chemicals, Resistant to Oils, Resistant to Water, Resistant to Weather |
| Application | Standard |
| Product Type | O-Ring |
| Outside Diameter - Nominal | 3/4 in |
| Cross-Section Width | 1/8 in |
| Inside Diameter - Nominal | 1/2 in |
| Material | Fluorosilicone |
| Resistance Properties | Chemical-Resistant, Fuel-Resistant, Oil-Resistant |
| Inside Diameter - Actual | 0.484 in |
| Width - Actual | 0.139 in |
| Outside Diameter - Actual | 0.762 in |
| Operating Temperature - Maximum | 480 deg F |
| Operating Temperature - Minimum | -80 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 5 |
