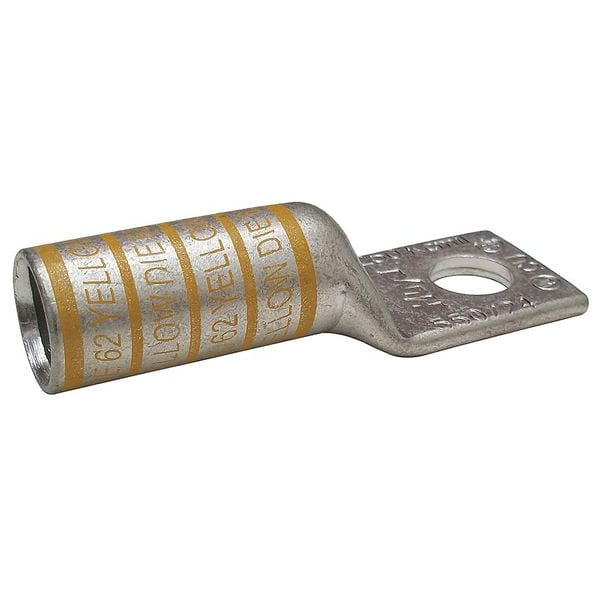

Terminal de compresión con un solo orificio, para cable de 250 kcmil.
| Cable Size | 250 kcmil |
|---|---|
| Connector Type | Straight Barrel |
| Width | 1.13 in |
| Material | Copper |
| Length | 3.2 in |
| Color Code | Yellow |
| Stud Size | 1/2 in |
| Item | One-Hole Lug Compression Connector |
| Tongue Style | Standard |
| Barrel Length | Long |
| Standards | CSA Certified, UL Listed |
| Peep Hole | No |
| Die Code | 62 |
| Hole Center to End | 1/2 in |
| Length (Straight Wireway) | 3.2 in |
| Maximum Operating Temperature | 300 deg F |
| Maximum Voltage | 600 V AC |
| Inspection Hole | No |
| For Wire Type | Stranded |
| For Wire Size | 250 kcmil |
| Current | 405 A |
| Tongue Angle | Straight |
| Seam Style | Seamless |
| RoHS Compliant | Yes |
| Tongue Width | 1.13 in |
| For Stud Size | 1/2 in |
| Strip Length | 1-11/16 in |
| Tongue Length | 1-1/4 in |
| Barrel Outside Diameter | 0.77 in |
| Barrel Inside Diameter | 0.63 in |
| Hole Size | 0.53 in |
| Overall Width | 1.13 in |
| For Stranded Copper Wire Size - Minimum | 250 kcmil |
| Barrel Style | Chamfered |
| Overall Length | 3.2 in |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Termination Style | Crimp |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| For Conductor Material | Copper |
| Barrel Size | Long |
| Tongue Thickness | 0.14 in |
| Contact Finish | Tin |
| Package Quantity | 1 |
