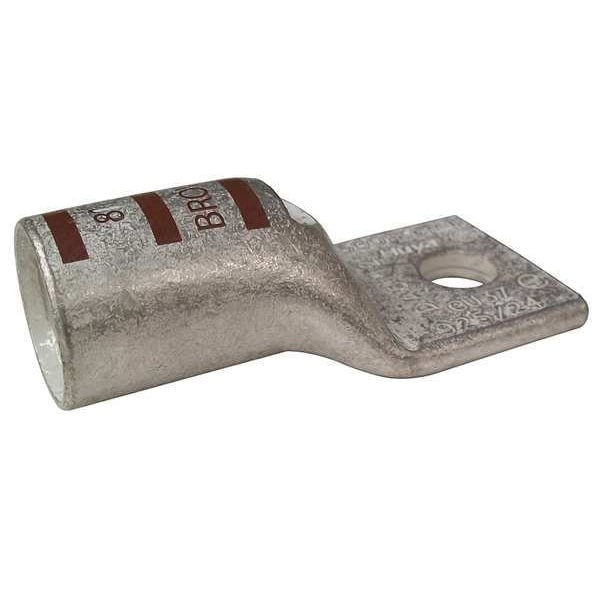

Unión de compresión de un solo orificio, 500 kcmil
| Cable Size | 500 kcmil |
|---|---|
| Connector Type | Straight Barrel |
| Width | 1.61 in |
| Material | Copper |
| Length | 3 in |
| Color Code | Brown |
| Tongue Style | Standard |
| Item | One-Hole Lug Compression Connector |
| Hole Center to End | 0.38 in |
| Peep Hole | Yes |
| Standards | UL Listed |
| Stud Size | 3/8 in |
| Die Code | 87 |
| Barrel Length | Short |
| Length (Straight Wireway) | 3 in |
| Current | 620 A |
| For Wire Type | Stranded |
| Overall Length | 3 in |
| Seam Style | Seamless |
| Tongue Angle | Straight |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Termination Style | Crimp |
| Maximum Operating Temperature | 300 deg F |
| Tongue Width | 1.61 in |
| Barrel Outside Diameter | 1.1 in |
| For Wire Size | 500 kcmil |
| Contact Finish | Tin |
| For Stranded Copper Wire Size - Maximum | 500 kcmil |
| Overall Width | 1.61 in |
| Hole Size | 0.405 in |
| Barrel Style | Chamfered |
| For Conductor Material | Copper |
| Barrel Inside Diameter | 0.88 in |
| Tongue Length | 1 in |
| Inspection Hole | Yes |
| Barrel Size | Short |
| Tongue Thickness | 0.22 in |
| For Stud Size | 3/8 in |
| Strip Length | 1-1/2 in |
| For Stranded Copper Wire Size - Minimum | 500 kcmil |
| RoHS Compliant | Yes |
| Maximum Voltage | 600 V AC |
| Package Quantity | 1 |
