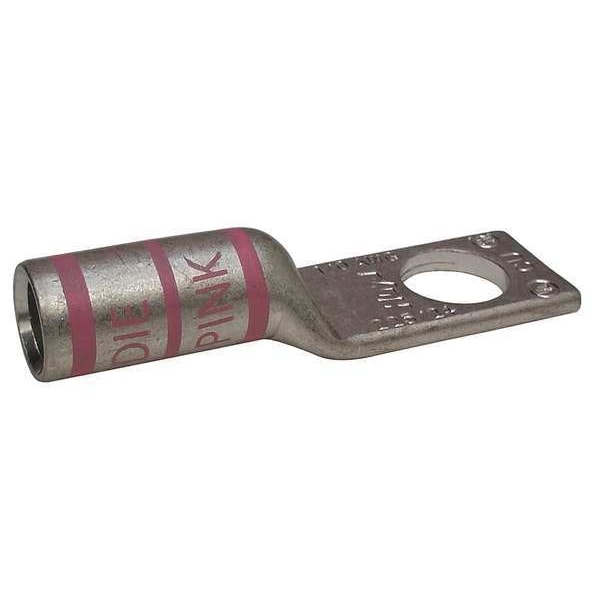

Conector de compresión de terminal de una perforación, calibre 1/0
| Cable Size | 1/0 |
|---|---|
| Connector Type | Straight Barrel |
| Width | 3/4 in |
| Material | Copper |
| Length | 2.27 in |
| Color Code | Pink |
| Barrel Length | Long |
| Hole Center to End | 0.31 in |
| Peep Hole | Yes |
| Standards | CSA Certified, UL Listed |
| Die Code | 42 |
| Stud Size | 1/4 in |
| Tongue Style | Standard |
| Item | One-Hole Lug Compression Connector |
| Length (Straight Wireway) | 2.27 in |
| Current | 230 A |
| Contact Finish | Tin |
| Maximum Voltage | 600 V AC |
| Tongue Width | 3/4 in |
| Overall Length | 2.27 in |
| Hole Size | 0.27 in |
| Barrel Inside Diameter | 0.39 in |
| For Wire Type | Stranded |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 1/0 AWG |
| Inspection Hole | Yes |
| Barrel Style | Chamfered |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Barrel Size | Long |
| Tongue Length | 0.64 in |
| For Stud Size | 1/4 in |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Termination Style | Crimp |
| RoHS Compliant | Yes |
| Tongue Thickness | 0.12 in |
| Tongue Angle | Straight |
| For Wire Size | 1/0 AWG |
| Seam Style | Seamless |
| Strip Length | 1-1/2 in |
| Overall Width | 3/4 in |
| Barrel Outside Diameter | 0.51 in |
| Maximum Operating Temperature | 300 deg F |
| Package Quantity | 1 |
