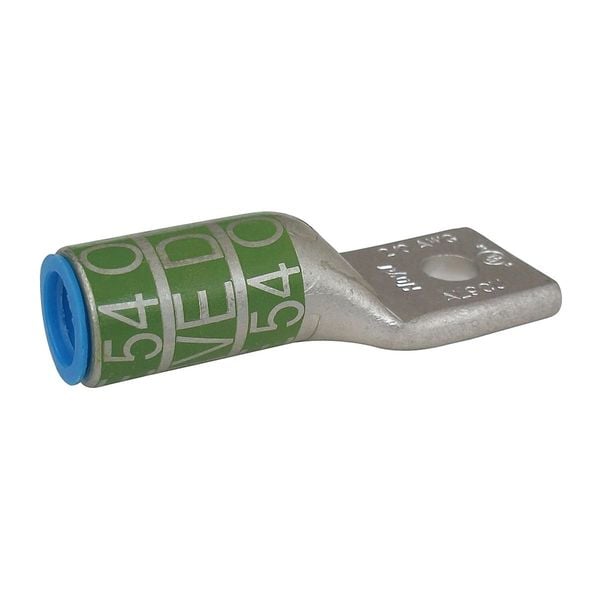

One Hole Lug Compress Connector, 1/0 AWG
| Cable Size | 1/0 |
|---|---|
| Connector Type | Straight Barrel |
| Width | 1.21 in |
| Material | Aluminum |
| Length | 3.3 in |
| Color Code | Tan |
| Peep Hole | No |
| Tongue Style | Standard |
| Standards | UL Listed |
| Barrel Length | Short |
| Stud Size | 1/2 in |
| Die Code | 50 |
| Item | One-Hole Lug Compression Connector |
| Hole Center to End | 0.38 in |
| Length (Straight Wireway) | 3.3 in |
| Tongue Thickness | 0.19 in |
| For Wire Type | Stranded |
| Special Features | Corrosion Resistant |
| Barrel Outside Diameter | 0.62 in |
| Overall Width | 0.94 in |
| Maximum Operating Temperature | 300 deg F |
| Termination Style | Crimp |
| For Stud Size | 1/2 in |
| For Stranded Copper Wire Size - Minimum | 1/0 AWG |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| For Stranded Aluminum Wire Size - Minimum | 1/0 AWG |
| Seam Style | Seamless |
| Tongue Angle | Straight |
| RoHS Compliant | Yes |
| Tongue Width | 0.94 in |
| Overall Length | 2.91 in |
| For Stranded Aluminum Wire Size - Maximum | 1/0 AWG |
| Tongue Length | 1.41 in |
| Inspection Hole | No |
| For Conductor Material | Aluminum |
| Current | 180 A |
| Maximum Voltage | 600 V AC |
| Barrel Size | Short |
| For Wire Size | 1/0 AWG |
| Barrel Style | Chamfered |
| Contact Finish | Tin |
| Barrel Inside Diameter | 0.41 in |
| Strip Length | 1-1/4 in |
| Hole Size | 0.53 in |
| Package Quantity | 1 |
