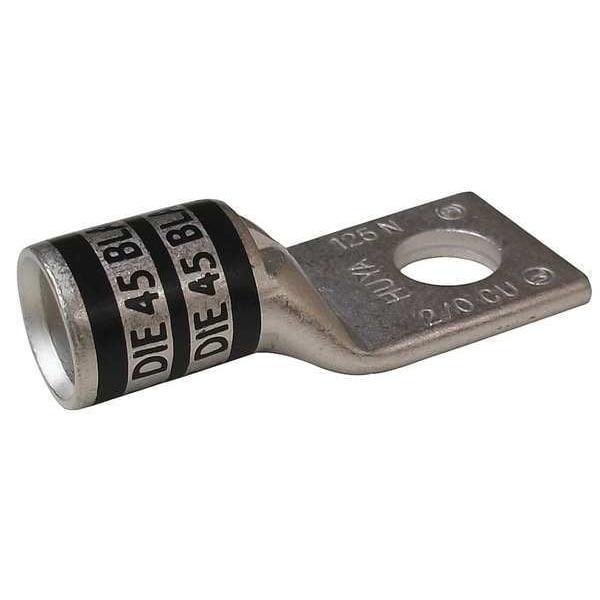

One Hole Lug Compress Connector, 2/0 AWG
| Cable Size | 2/0 |
|---|---|
| Connector Type | Straight Barrel |
| Width | 0.83 in |
| Material | Copper |
| Length | 1.88 in |
| Color Code | Black |
| Die Code | 45 |
| Peep Hole | Yes |
| Barrel Length | Short |
| Standards | CSA Certified, UL Listed |
| Hole Center to End | 0.38 in |
| Item | One-Hole Lug Compression Connector |
| Tongue Style | Standard |
| Stud Size | 5/16 in |
| Length (Straight Wireway) | 1.88 in |
| Barrel Style | Chamfered |
| Inspection Hole | Yes |
| Maximum Voltage | 600 V AC |
| RoHS Compliant | Yes |
| For Wire Size | 2/0 AWG |
| Barrel Outside Diameter | 0.57 in |
| Overall Length | 1.88 in |
| For Stud Size | 5/16 in |
| Contact Finish | Tin |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Barrel Inside Diameter | 0.44 in |
| For Conductor Material | Copper |
| For Wire Type | Stranded |
| Overall Width | 0.83 in |
| Tongue Width | 0.83 in |
| Maximum Operating Temperature | 300 deg F |
| Current | 265 A |
| For Stranded Copper Wire Size - Minimum | 2/0 AWG |
| Seam Style | Seamless |
| Hole Size | 0.335 in |
| Barrel Size | Short |
| Tongue Thickness | 0.13 in |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 0.88 in |
| Strip Length | 13/16 in |
| Package Quantity | 1 |
