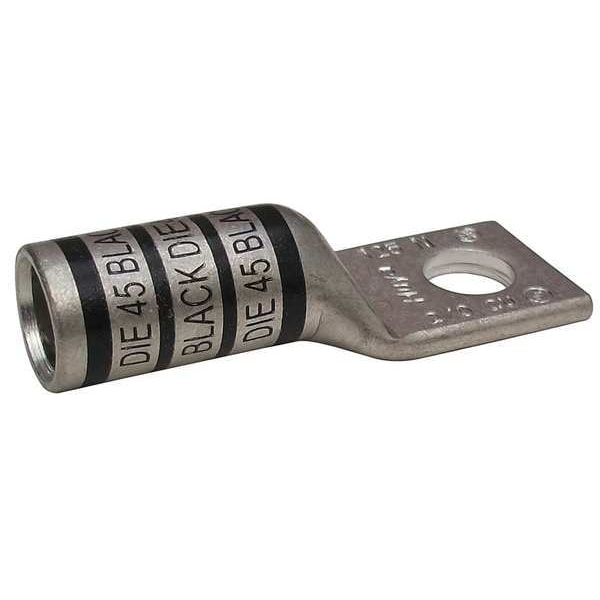

Conector de compresión de orejeta de un agujero, calibre 2/0 AWG.
| Cable Size | 2/0 |
|---|---|
| Connector Type | Straight Barrel |
| Width | 0.97 in |
| Material | Copper |
| Length | 2.22 in |
| Color Code | Black |
| Barrel Length | Long |
| Die Code | 45 |
| Hole Center to End | 0.34 in |
| Tongue Style | Standard |
| Peep Hole | No |
| Stud Size | 1/4 in |
| Item | One-Hole Lug Compression Connector |
| Standards | CSA Certified, UL Listed |
| Length (Straight Wireway) | 2.22 in |
| Current | 265 A |
| Termination Style | Crimp |
| Barrel Style | Chamfered |
| Barrel Size | Long |
| Maximum Voltage | 600 V AC |
| For Stranded Copper Wire Size - Minimum | 2/0 AWG |
| Strip Length | 1-1/8 in |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| For Wire Size | 2/0 AWG |
| Contact Finish | Tin |
| Maximum Operating Temperature | 300 deg F |
| Tongue Angle | Straight |
| Inspection Hole | No |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Barrel Inside Diameter | 0.45 in |
| Tongue Thickness | 0.13 in |
| Tongue Width | 0.82 in |
| Hole Size | 0.27 in |
| RoHS Compliant | Yes |
| Seam Style | Seamless |
| For Conductor Material | Copper |
| Tongue Length | 0.87 in |
| For Wire Type | Stranded |
| For Stud Size | 1/4 in |
| Barrel Outside Diameter | 0.57 in |
| Overall Length | 2.22 in |
| Overall Width | 0.82 in |
| Package Quantity | 1 |
