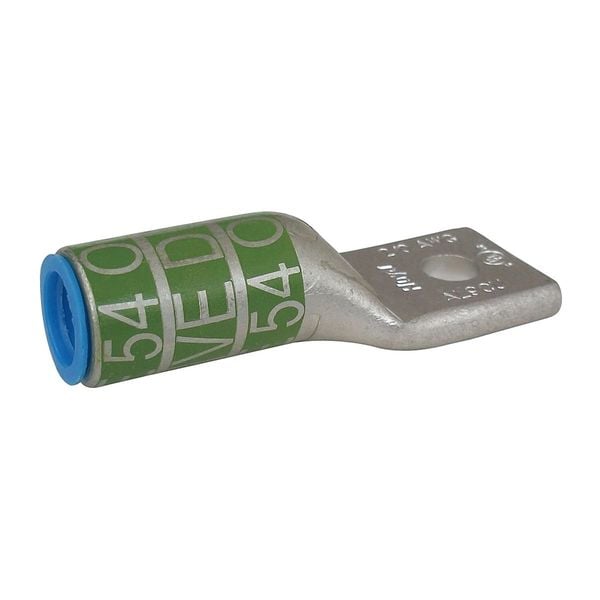

One Hole Lug Compress Connector, 2/0 AWG
| Cable Size | 2/0 |
|---|---|
| Connector Type | Straight Barrel |
| Width | 0.6 in |
| Material | Aluminum |
| Length | 1.63 in |
| Color Code | Olive |
| Hole Center to End | 0.44 in |
| Standards | UL Listed |
| Item | One-Hole Lug Compression Connector |
| Stud Size | 5/16 in |
| Peep Hole | No |
| Tongue Style | Standard |
| Die Code | 54 |
| Barrel Length | Short |
| Length (Straight Wireway) | 1.63 in |
| Inspection Hole | No |
| Strip Length | 1-5/16 in |
| RoHS Compliant | Yes |
| Seam Style | Seamless |
| For Wire Size | 2/0 AWG |
| Tongue Thickness | 0.24 in |
| Tongue Angle | Straight |
| Barrel Style | Chamfered |
| Hole Size | 0.335 in |
| Termination Style | Crimp |
| Maximum Operating Temperature | 300 deg F |
| Barrel Inside Diameter | 0.46 in |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| Maximum Voltage | 600 V AC |
| Barrel Size | Short |
| For Stud Size | 5/16 in |
| Overall Width | 0.97 in |
| For Conductor Material | Aluminum |
| Barrel Outside Diameter | 0.7 in |
| For Stranded Aluminum Wire Size - Minimum | 2/0 AWG |
| For Stranded Copper Wire Size - Minimum | 2/0 AWG |
| Tongue Length | 1.03 in |
| Special Features | Corrosion Resistant |
| Contact Finish | Tin |
| For Wire Type | Stranded |
| For Stranded Aluminum Wire Size - Maximum | 2/0 AWG |
| Tongue Width | 0.97 in |
| Overall Length | 2.64 in |
| Current | 210 A |
| Package Quantity | 1 |
