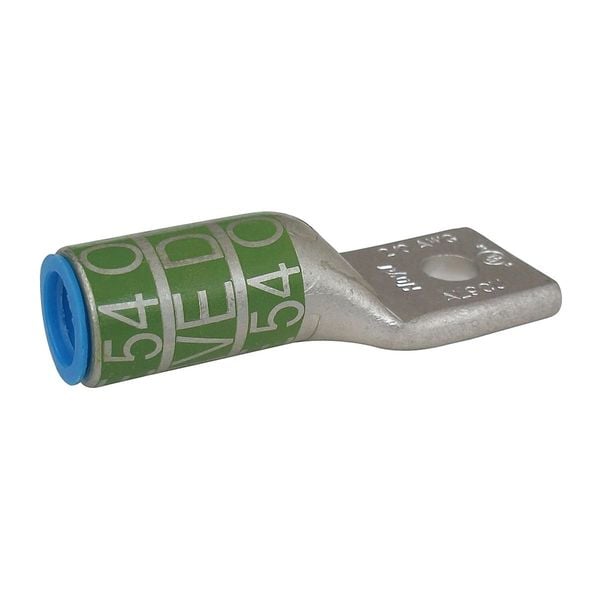

Conector de compresión de un solo orificio, calibre 3/0 AWG.
| Cable Size | 3/0 |
|---|---|
| Connector Type | Straight Barrel |
| Width | 0.94 in |
| Material | Aluminum |
| Length | 2.91 in |
| Color Code | Ruby |
| Barrel Length | Short |
| Item | One-Hole Lug Compression Connector |
| Standards | UL Listed |
| Peep Hole | No |
| Tongue Style | Standard |
| Hole Center to End | 0.69 in |
| Stud Size | 3/8 in |
| Die Code | 60 |
| Length (Straight Wireway) | 2.91 in |
| For Stranded Copper Wire Size - Maximum | 3/0 AWG |
| Special Features | Corrosion Resistant |
| Overall Length | 2.98 in |
| Tongue Angle | Straight |
| For Stranded Aluminum Wire Size - Minimum | 3/0 AWG |
| Tongue Length | 1.09 in |
| Contact Finish | Tin |
| RoHS Compliant | Yes |
| For Stud Size | 3/8 in |
| Hole Size | 0.405 in |
| For Stranded Copper Wire Size - Minimum | 3/0 AWG |
| Overall Width | 1.06 in |
| Strip Length | 1-1/2 in |
| Barrel Outside Diameter | 0.77 in |
| For Wire Type | Stranded |
| Maximum Voltage | 600 V AC |
| Tongue Thickness | 0.24 in |
| Inspection Hole | No |
| Termination Style | Crimp |
| Barrel Inside Diameter | 0.52 in |
| Maximum Operating Temperature | 300 deg F |
| Barrel Size | Short |
| Tongue Width | 1.06 in |
| For Conductor Material | Aluminum |
| For Wire Size | 3/0 AWG |
| Current | 240 A |
| Barrel Style | Chamfered |
| Seam Style | Seamless |
| For Stranded Aluminum Wire Size - Maximum | 3/0 AWG |
| Package Quantity | 1 |
