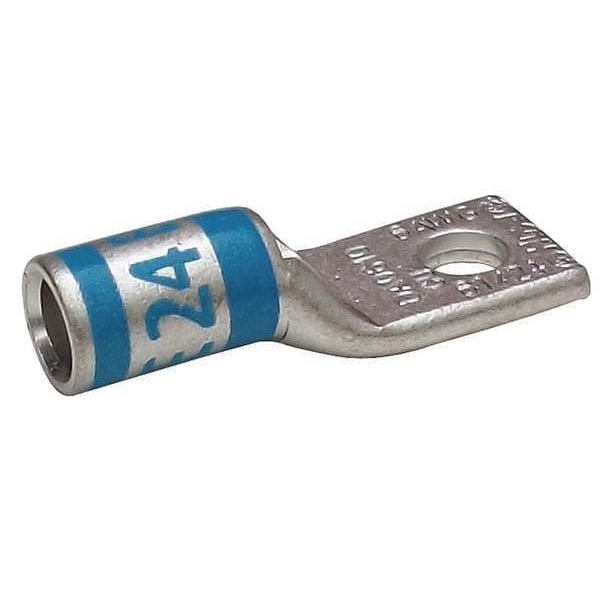

One Hole Lug Compression Connector, 6 AWG
| Cable Size | 6 AWG |
|---|---|
| Connector Type | Straight Barrel |
| Width | 0.6 in |
| Material | Copper |
| Length | 1.37 in |
| Color Code | Blue |
| Standards | UL Listed |
| Stud Size | 3/8 in |
| Item | One-Hole Lug Compression Connector |
| Hole Center to End | 0.31 in |
| Barrel Length | Short |
| Die Code | 24 |
| Tongue Style | Standard |
| Peep Hole | Yes |
| Length (Straight Wireway) | 1.37 in |
| Tongue Width | 0.6 in |
| Overall Width | 0.6 in |
| For Wire Type | Stranded |
| Tongue Thickness | 0.07 in |
| Inspection Hole | Yes |
| Barrel Inside Diameter | 0.22 in |
| Termination Style | Crimp |
| Barrel Outside Diameter | 0.3 in |
| Overall Length | 1.37 in |
| For Stud Size | 3/8 in |
| Hole Size | 0.405 in |
| For Stranded Copper Wire Size - Maximum | 6 AWG |
| Seam Style | Seamless |
| Strip Length | 9/16 in |
| Barrel Style | Chamfered |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Barrel Size | Short |
| Contact Finish | Tin |
| Maximum Voltage | 600 V AC |
| Current | 95 A |
| RoHS Compliant | Yes |
| For Wire Size | 6 AWG |
| For Conductor Material | Copper |
| Tongue Angle | Straight |
| Tongue Length | 0.67 in |
| Maximum Operating Temperature | 300 deg F |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| Package Quantity | 1 |
