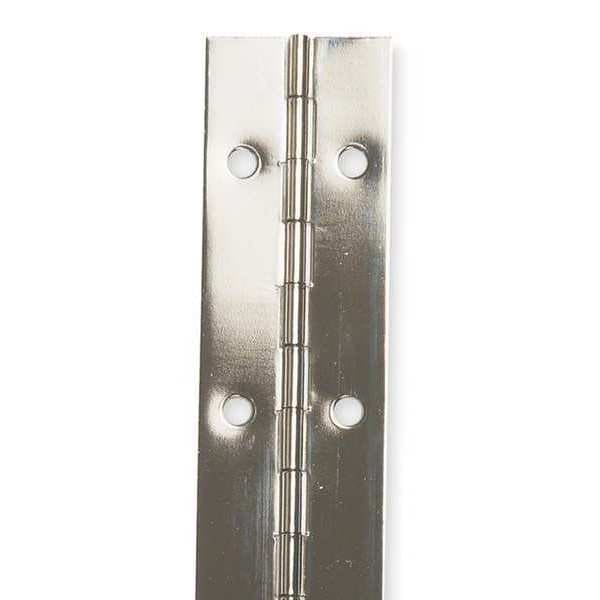

Piano Hinge, Steel, Full Surface Mounting, 5/8 in Leaf W x 72 in Leaf H, Bright Nickel
| Item | Piano Hinge |
|---|---|
| Material | Steel |
| Mounting | Full Surface |
| Range of Motion | 180 deg |
| Ligature Resistant | No |
| Finish | Bright Nickel |
| Holes | With |
| Door Leaf Width | 5/8 in |
| Door Leaf Height | 72 in |
| Door Leaf Thickness | 0.06 in |
| Holes per Leaf | 36 |
| Frame Leaf Width | 5/8 in |
| Frame Leaf Height | 72 in |
| Frame Leaf Thickness | 0.06 in |
| Orientation | Non Handed |
| Pin Material | Steel |
| Hardware | Not included |
| Features | Can Be Cut to Size With A Hacksaw |
| Pin Type | Nonremovable |
| Overall Width | 1-1/4 in |
| Overall Knuckle Height | 1/2 in |
| Length | 6 ft |
| Hole Spacing | 2 in |
| Pin Dia. | 1/8 in |
| Bearing Type | Plain |
| Color | Silver |
| Width | 1-1/4 in |
| Height | 4 ft |
| Hand Orientation | Non-Handed |
| Hinge Length | 6 ft |
| Range of Motion - Maximum | 180 deg |
| Pin Diameter | 1/8 in |
| Number of Holes per Leaf | 36 |
| Mounting Style | Full Surface |
| ANSI/BHMA Finish | Bright Nickel-Plated, Clear Coated |
| Removable Pin | No |
| Includes Hardware | Hardware Not Included |
| Resistance Properties | Corrosion-Resistant |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
