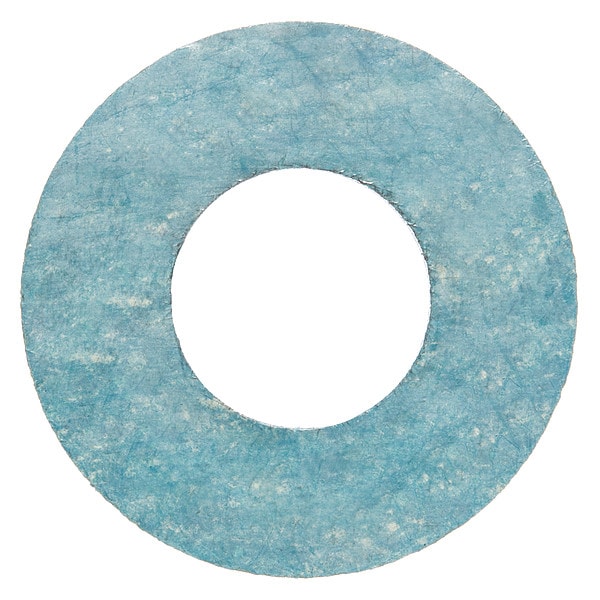

Raised Face Aramid Flange Gasket for 8" Pipe, 1/16" Thick, No 150
| Pipe Size | 8 in |
|---|---|
| Outside Dia. | 11 in |
| Inside Dia. | 8-5/8 in |
| Bolt Holes | 0 |
| Thickness | 1/16 in |
| Material of Construction | Aramid Fiber with Buna N Binder |
| Flange Class | Class 150 |
| Color | Green |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Type | Ring |
| Hardness | Not Rated |
| Standards | ASME B16.21 |
| Temp. Range (F) | -100 Degrees to 400 Degrees |
| Included Fasteners | Not Applicable |
| Metal Detectable Gasket | No |
| Binder Material | Buna-N |
| FDA Approved | No |
| For Fluid Type | Oil |
| For Flange ANSI Class | 150 |
| Reinforced | No |
| Insert Material | None |
| Maximum Operating Pressure | 150 psi |
| For Pipe Size | 8 in |
| Gasket Material | Aramid |
| Gasket Type | Ring Gasket |
| Inside Diameter | 8-5/8 in |
| Maximum Operating Temperature | 400 deg F |
| System of Measurement | Inch |
| X-Ray Detectable | No |
| Minimum Operating Temperature | -100 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
