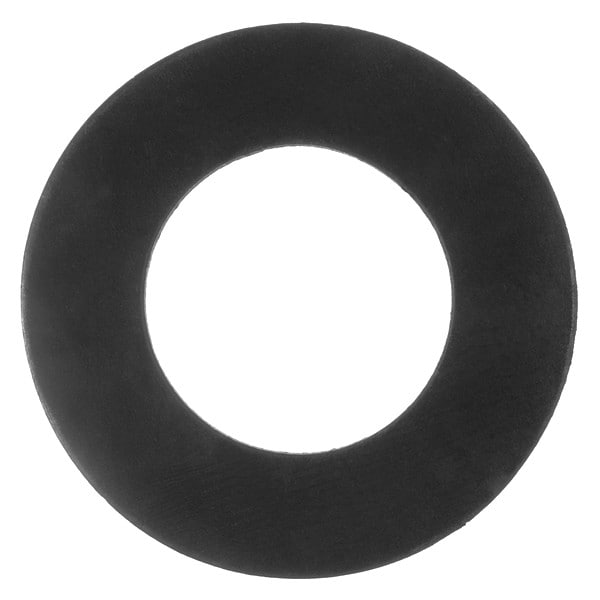

Raised Face Buna-N Flange Gasket for 1" Pipe, 1/8" Thick, No 150
| Pipe Size | 1 in |
|---|---|
| Outside Dia. | 2-5/8 in |
| Inside Dia. | 1-5/16 in |
| Bolt Holes | 0 |
| Thickness | 1/8 in |
| Material of Construction | Buna N |
| Flange Class | Class 150 |
| Color | Black |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Standards | ASME B16.21, ASTM D2000 BF 607 |
| Type | Ring |
| Hardness | Shore 60A |
| Temp. Range (F) | -30 Degrees to 250 Degrees |
| Insert Material | None |
| Market | Industrial |
| For Fluid Type | Oil |
| Included Fasteners | Not Applicable |
| Reinforced | No |
| For Piping System | Food and Beverage |
| For Flange ANSI Class | 150 |
| Binder Material | None |
| Metal Detectable Gasket | No |
| For Pipe Size | 1 in |
| X-Ray Detectable | No |
| Maximum Operating Temperature | 250 deg F |
| Inside Diameter | 1-5/16 in |
| Maximum Operating Pressure | 150 psi |
| Minimum Operating Temperature | -30 deg F |
| System of Measurement | Inch |
| Gasket Material | Buna-N |
| Gasket Type | Ring Gasket |
| For Environment | Beverage, Food |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
