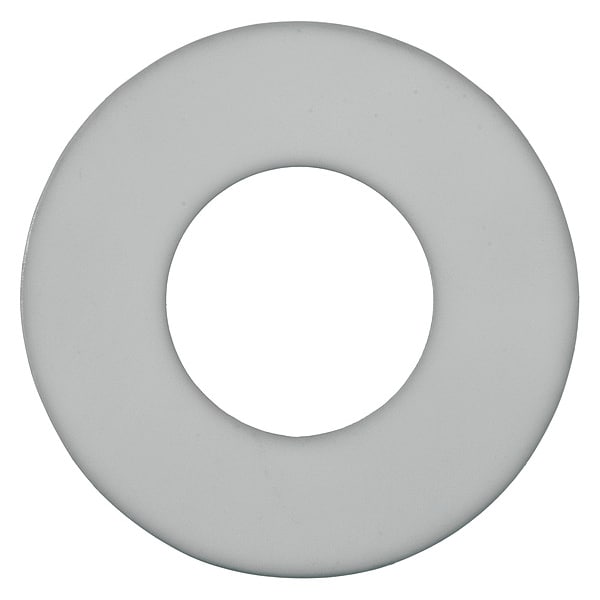

Raised Face PTFE Flange Gasket for 5" Pipe, 1/8" Thick, No 300
| Pipe Size | 5 in |
|---|---|
| Outside Dia. | 8-1/2 in |
| Inside Dia. | 5-9/16 in |
| Bolt Holes | 0 |
| Thickness | 1/8 in |
| Material of Construction | PTFE Plastic |
| Flange Class | Class 300 |
| Color | White |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Standards | ASME B16.21, FDA |
| Type | Ring |
| Hardness | Not Rated |
| Temp. Range (F) | -450 Degrees to 500 Degrees |
| For Flange ANSI Class | 300 |
| Reinforced | No |
| For Piping System | Chemical, Food and Beverage, High Temperature |
| FDA Approved | Yes |
| For Fluid Type | Not Applicable |
| Metal Detectable Gasket | No |
| Included Fasteners | Not Applicable |
| Binder Material | None |
| Insert Material | None |
| For Pipe Size | 5 in |
| For Environment | Beverage, Food |
| System of Measurement | Inch |
| Inside Diameter | 5-9/16 in |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 500 deg F |
| Gasket Material | PTFE |
| Gasket Type | Ring Gasket |
| Minimum Operating Temperature | -450 deg F |
| X-Ray Detectable | No |
| Resistance Properties | Temperature-Resistant |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
