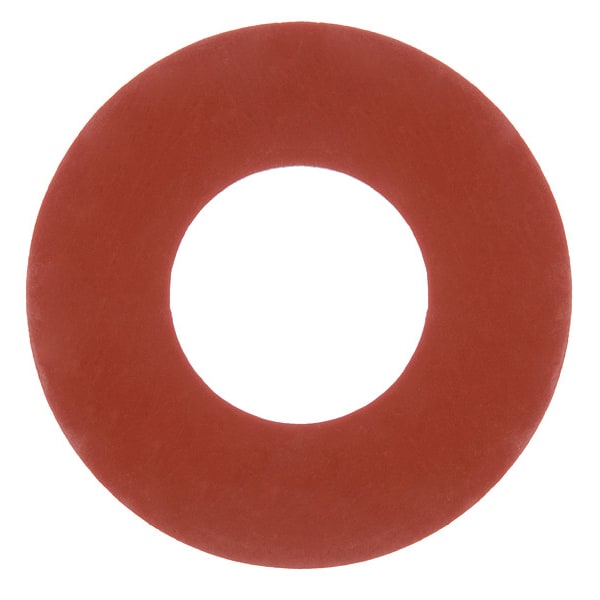

Raised Face Silicone Flange Gasket for 1" Pipe, 1/8" T, No 150
| Pipe Size | 1 in |
|---|---|
| Outside Dia. | 2-5/8 in |
| Inside Dia. | 1-5/16 in |
| Bolt Holes | 0 |
| Thickness | 1/8 in |
| Material of Construction | Silicone |
| Flange Class | Class 150 |
| Color | Red |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Hardness | Shore 60A |
| Standards | ASME B16.21, ASTM D2000 GE 607, FDA, MIL-A-A-59588 Type 2A/2B |
| Type | Ring |
| Temp. Range (F) | -80 Degrees to 500 Degrees |
| Metal Detectable Gasket | No |
| Binder Material | None |
| Market | Industrial |
| For Flange ANSI Class | 150 |
| For Fluid Type | Not Applicable |
| For Piping System | Food and Beverage, High Temperature |
| FDA Approved | Yes |
| Included Fasteners | Not Applicable |
| Reinforced | No |
| Insert Material | None |
| System of Measurement | Inch |
| Gasket Type | Ring Gasket |
| Gasket Material | Silicone |
| For Pipe Size | 1 in |
| For Environment | Beverage, Food |
| Maximum Operating Pressure | 150 psi |
| X-Ray Detectable | No |
| Inside Diameter | 1-5/16 in |
| Maximum Operating Temperature | 500 deg F |
| Minimum Operating Temperature | -80 deg F |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
