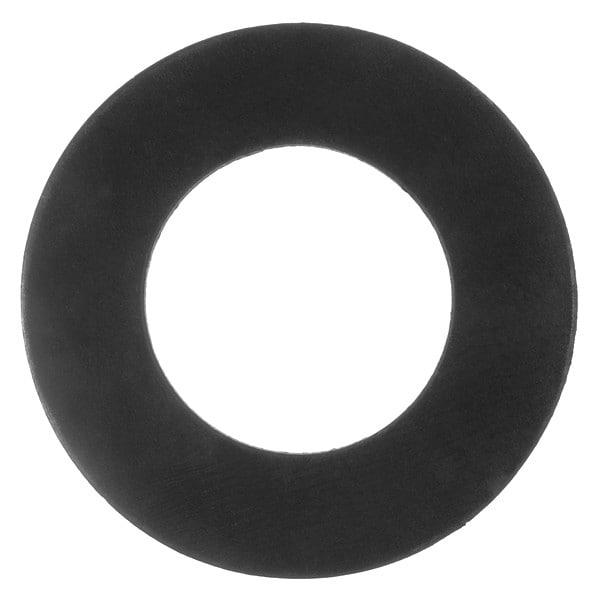

Raised Face Viton Flange Gasket for 8" Pipe, 1/16" Thick, No 150
| Pipe Size | 8 in |
|---|---|
| Outside Dia. | 11 in |
| Inside Dia. | 8-5/8 in |
| Bolt Holes | 0 |
| Thickness | 1/16 in |
| Material of Construction | Viton |
| Flange Class | Class 150 |
| Color | Black |
| Item | Ring Flange Gasket |
| Product Type | Gasket |
| Metal Detectable | No |
| Type | Ring |
| Hardness | Not Rated |
| Standards | ASME B16.21 |
| Temp. Range (F) | -20 Degrees to 450 Degrees |
| FDA Approved | No |
| For Fluid Type | Not Applicable |
| Market | Industrial |
| Reinforced | No |
| For Piping System | Chemical |
| For Flange ANSI Class | 150 |
| Included Fasteners | Not Applicable |
| Metal Detectable Gasket | No |
| Insert Material | None |
| Binder Material | None |
| Material Trade Name | Viton |
| Minimum Operating Temperature | -20 deg F |
| Gasket Material | FKM |
| Maximum Operating Pressure | 150 psi |
| System of Measurement | Inch |
| X-Ray Detectable | No |
| Inside Diameter | 8-5/8 in |
| Gasket Type | Ring Gasket |
| Maximum Operating Temperature | 450 deg F |
| For Pipe Size | 8 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
