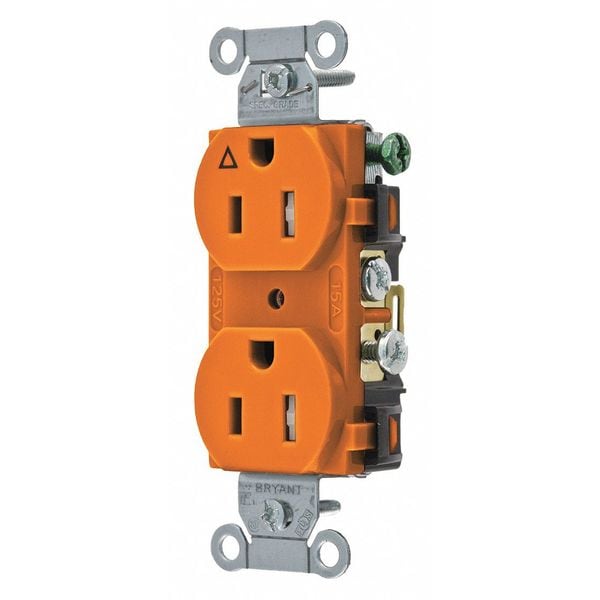

Receptacle, 15 A Amps, 125V AC, Flush Mount, Standard Duplex Outlet, 5-15R, Orange
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Orange |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Number of Gangs | 1 |
| Outlet Type | Duplex |
| Phase | Single |
| Wiring Method | Back, Side |
| Mounting Type | Flush |
| Sub-Category | Duplex Receptacles |
| Weather Resistant | No |
| Standards | CSA Certified, Federal Specification, UL Listed |
| Amps - Plugs and Receptacles | 15 |
| Voltage | 125VAC |
| Material | Nylon |
| Corrosion Resistant | No |
| Special Features | Isolated Ground |
| HP | 1/2 hp |
| Color | Orange |
| Amps | 15 |
| Width | 1.38 in |
| Height | 0.92 in |
| AFCI | No |
| Horsepower Rating | 0.5 HP |
| Housing Color | Orange |
| Mount Hole Center-to-Center Height | 4.1 in |
| Cover Type | No Cover |
| Minimum Wire Size | 14 AWG |
| Overall Depth | 0.9 in |
| Surge Protection | No |
| Voltage Rating | 125V AC |
| Includes | Mounting Hardware |
| Mount Type | Flush |
| Flange Width | Not Applicable |
| Resistance Properties | Impact Resistant, Heat Resistant, Chemical Resistant |
| Contact Material | Brass |
| Grade | Federal Specification |
| Housing Material | Composite |
| NEMA Receptacle Configuration | 5-15R |
| Face Plate Height | 2.7 in |
| Current Rating | 15 A |
| GFCI | No |
| Includes Mounting Hardware | Yes |
| For Location | Indoor |
| Receptacle Type | Duplex |
| Maximum Wire Size | 12 AWG |
| Flange Height | Not Applicable |
| Flange Type | Non-Flanged |
| Flange Diameter | Not Applicable |
| Grounding | Grounded, Isolated Ground |
| Market | Commercial |
| Connection Orientation | Straight |
| Polarized | Yes |
| Wire Connection Type | Screw Terminals |
| Amperage Rating | 15 A |
| Voltage Rating Description | 125 V |
| Application | Commercial Specification Grade |
| Style | Smooth Face |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Connectivity | Side Wired |
| Material - Mounting Hardware | Screw Mounting |
| Wattage | 1875 |
| Display Size | Standard Sized Product |
| Current / Amperage Rating | 15 A |
| Item Type | Traditional Duplex Smooth Face |
| Nema Rating | 5-15R |
| Wire Size | #14 AWG to #12 AWG |
| Type | Duplex Receptacle |
| Series | Straight Blade |
| Length | 3.28 in |
| Package Quantity | 1 |
