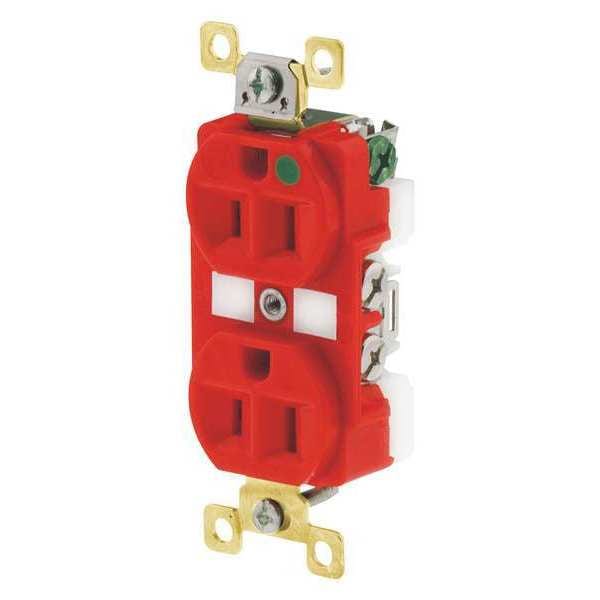

Receptacle, 15 A Amps, 125V AC, Flush Mount, Standard Duplex Outlet, 5-15R, Red
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Hospital Grade |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Red |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Material | Nylon |
| Voltage | 125VAC |
| Wiring Method | Back, Side |
| Outlet Type | Duplex |
| Corrosion Resistant | Yes |
| HP | 1/2 hp |
| Phase | Single |
| Mounting Type | Flush |
| Color | Red |
| Standards | CSA Certified, UL Listed |
| Weather Resistant | No |
| Special Features | Corrosion resistant |
| NEMA Configuration | 5-15 |
| Amps | 15 |
| Number of Gangs | 1 |
| Sub-Category | Duplex Receptacles |
| Height | 1.16 in |
| Width | 1.54 in |
| Resistance Properties | Corrosion Resistant |
| Flange Width | Not Applicable |
| Includes | Grounding Screw/Clip, Mounting Hardware |
| Current Rating | 15 A |
| Maximum Wire Size | 12 AWG |
| Minimum Operating Temperature | -40 deg F |
| Housing Color | Red |
| Cover Type | No Cover |
| UL 94 Flammability Rating | V-2 |
| Includes Mounting Hardware | Yes |
| Flange Height | Not Applicable |
| Face Plate Height | 1.3 in |
| Connection Orientation | Straight |
| Horsepower Rating | 0.5 HP |
| Contact Material | Copper |
| Flange Diameter | Not Applicable |
| GFCI | No |
| Surge Protection | No |
| Overall Depth | 1.2 in |
| Market | Industrial |
| Minimum Wire Size | 14 AWG |
| Grade | Hospital Grade Fed. Spec. |
| Housing Material | Composite |
| Maximum Operating Temperature | 140 deg F |
| Voltage Rating | 125V AC |
| Flange Type | Non-Flanged |
| Mount Type | Flush |
| For Location | Indoor |
| Mount Hole Center-to-Center Height | 3.3 in |
| Grounding | Grounded |
| Face Plate Width | 1.7 in |
| Wire Connection Type | Screw Terminals |
| NEMA Receptacle Configuration | 5-15R |
| AFCI | No |
| Shrouded | Yes |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Wire Size | #14 AWG to #12 AWG |
| Material - Mounting Hardware | Screw Mounting |
| Amperage Rating | 15 A |
| Length | 3.28 in |
| Item Type | Traditional Duplex |
| Display Size | Standard Sized Product |
| Connectivity | Back and Side Wired |
| Application | Hospital Grade |
| Type | Duplex Receptacle |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Wattage | 1875 |
| Nema Rating | 5-15R |
| Style | Finder Groove Face |
| Series | Hospital Grade |
| Package Quantity | 1 |
