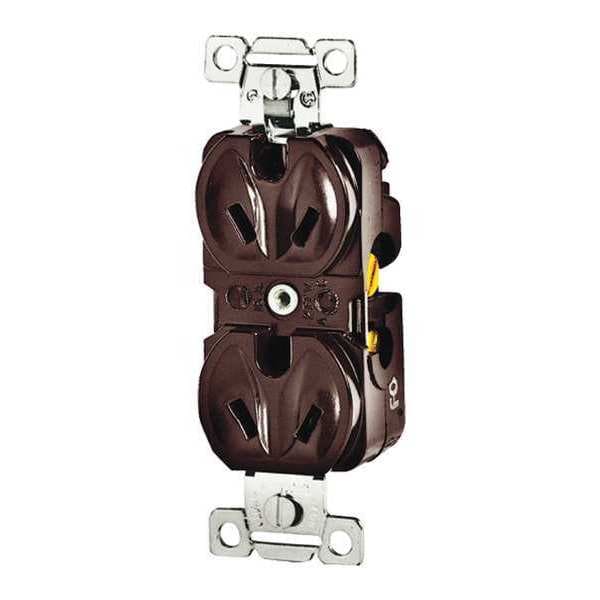

Receptacle, 15 A Amps, 277V AC, Flush Mount, Standard Duplex Outlet, 7-15R, Brown
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 15 A |
| Voltage - Plugs and Receptacles | 277V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 7-15R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Brown |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Phase | Single |
| Special Features | Corrosion resistant |
| Mounting Type | Flush |
| Number of Gangs | 1 |
| Weather Resistant | No |
| Wiring Method | Back, Side |
| Outlet Type | Duplex |
| Voltage | 277VAC |
| Material | Nylon |
| Amps - Plugs and Receptacles | 15 |
| Color | Brown |
| Amps | 15 |
| Standards | CSA Certified, UL Listed |
| HP | 1/2 hp |
| Corrosion Resistant | Yes |
| Sub-Category | Duplex Receptacles |
| Height | 0.86 in |
| Width | 1.38 in |
| Grade | General Use |
| Surge Protection | No |
| Current Rating | 15 A |
| Includes Mounting Hardware | Yes |
| GFCI | No |
| NEMA Receptacle Configuration | 7-15R |
| Horsepower Rating | 0.5 HP |
| Mount Type | Flush |
| Face Plate Width | 1.4 in |
| Minimum Wire Size | 14 AWG |
| Resistance Properties | Corrosion Resistant |
| Maximum Wire Size | 12 AWG |
| Flange Type | Non-Flanged |
| Mount Hole Center-to-Center Height | 3.3 in |
| Cover Type | No Cover |
| Housing Material | Nylon |
| Connection Orientation | Straight |
| Housing Color | Brown |
| Flange Height | Not Applicable |
| Flange Diameter | Not Applicable |
| Flange Width | Not Applicable |
| Includes | Mounting Hardware |
| Wire Connection Type | Screw Terminals |
| Grounding | Grounded |
| For Location | Indoor |
| Receptacle Type | Duplex |
| AFCI | No |
| Market | Commercial, Industrial |
| Face Plate Height | 0.9 in |
| Voltage Rating | 277V AC |
| Overall Depth | 0.9 in |
| Polarized | Yes |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Material - Mounting Hardware | Screw Mounting |
| Nema Rating | 7-15R |
| Voltage Rating Description | 277 V |
| Wattage | 4155 |
| Type | Duplex Receptacle |
| Wire Size | #14 AWG to #12 AWG |
| Display Size | Standard Sized Product |
| Style | Finder Groove Face |
| Series | Heavy Duty |
| Application | Extra Heavy Duty Industrial Specification Grade |
| Item Type | Traditional Duplex |
| Amperage Rating | 15 A |
| Current / Amperage Rating | 15 A |
| Connectivity | Back and Side Wired |
| Length | 3.28 in |
| Package Quantity | 1 |
