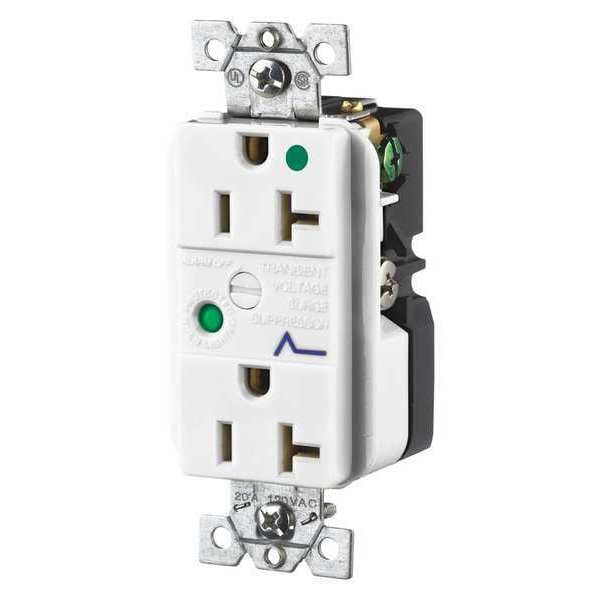

Receptacle, 20 A Amps, 125V AC, Flush Mount, Decorator Duplex Outlet, 5-20R, White
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Decorator Duplex |
| Application Environment | Hospital Grade |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | Yes |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Standards | CSA Certified, UL Listed |
| Mounting Type | Flush |
| Special Features | Audible Alarm |
| Number of Gangs | 1 |
| Sub-Category | Decorator Receptacles |
| Outlet Type | Decorator |
| Color | White |
| Weather Resistant | No |
| Phase | Single |
| Voltage | 125VAC |
| HP | 1 hp |
| Corrosion Resistant | No |
| Wiring Method | Back, Side |
| Material | Nylon |
| Amps | 20 |
| Horsepower Rating | 1 HP |
| Minimum Operating Temperature | 32 deg F |
| Voltage Rating | 125V AC |
| Housing Material | Composite |
| Surge Protection | Yes |
| Overall Depth | 4 in |
| For Location | Indoor |
| Mount Type | Flush |
| Flange Height | Not Applicable |
| AFCI | No |
| GFCI | No |
| Includes | Mounting Hardware |
| Housing Color | White |
| Maximum Operating Temperature | 140 deg F |
| Grounding | Grounded |
| Flange Diameter | Not Applicable |
| Face Plate Width | 1.7 in |
| Flange Type | Non-Flanged |
| Flange Width | Not Applicable |
| Grade | Hospital Grade |
| Cover Type | No Cover |
| NEMA Receptacle Configuration | 5-20R |
| Current Rating | 20 A |
| Receptacle Type | Duplex |
| Polarized | Yes |
| Connection Orientation | Straight |
| Face Plate Height | 2.8 in |
| Includes Mounting Hardware | Yes |
| Wire Connection Type | Screw Terminals |
| Series | Hospital Grade |
| Material - Mounting Hardware | Mounting Screws |
| Application | Duplex with Light and Alarm |
| Response Time | 5 |
| Item Type | Surge Protection Receptacles |
| Connectivity | Terminal Screws |
| Indicator(s) Type | LED and Audible Alarm |
| Style | Isolated Ground |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Amperage Rating | 20 A |
| Type | Duplex Receptacle |
| Display Size | Standard |
| Outlet | Straight Blade |
| Frequency Rating | 60 Hz |
| Current / Amperage Rating | 20 A |
| Nema Rating | 5-20R |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Voltage Rating Description | 125 V |
| Package Quantity | 1 |
