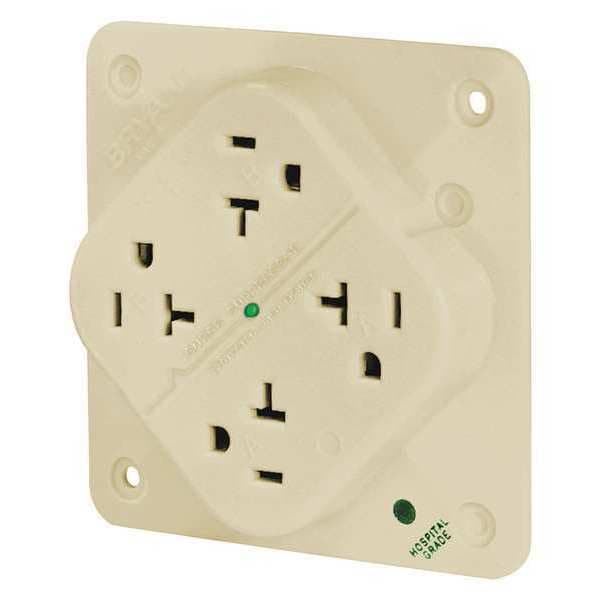

Receptacle, 20 A Amps, 125V AC, Flush Mount, Quad Outlet, 5-20R, Ivory
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Quad |
| Application Environment | Hospital Grade |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | Yes |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Standards | CSA Certified, UL Listed |
| Special Features | Corrosion resistant |
| Number of Gangs | 1 |
| Color | Ivory |
| Material | Nylon |
| Outlet Type | Quad |
| HP | 1 hp |
| Wiring Method | Back, Side |
| Amps | 20 |
| Voltage | 125VAC |
| Sub-Category | Quad Receptacles |
| Phase | Single |
| Mounting Type | Flush |
| Weather Resistant | No |
| Corrosion Resistant | Yes |
| Width | 4.3 in |
| Height | 0.92 in |
| Number of Outlets | 4 |
| Face Plate Width | 4.3 in |
| Maximum Operating Temperature | 140 deg F |
| Overall Depth | 0.9 in |
| Mount Hole Center-to-Center Height | 3.4 in |
| Voltage Rating | 125V AC |
| Horsepower Rating | 1 HP |
| Wire Connection Type | Screw Terminals |
| Flange Height | Not Applicable |
| Cover Type | No Cover |
| Flange Type | Non-Flanged |
| Resistance Properties | Impact Resistant |
| Grounding | Isolated Grounding |
| Mount Hole Center-to-Center Width | 3.4 in |
| Receptacle Type | Quad |
| Flange Width | Not Applicable |
| Includes | Mounting Hardware |
| AFCI | No |
| Grade | Hospital Grade |
| Flange Diameter | Not Applicable |
| Includes Mounting Hardware | Yes |
| Connection Orientation | Straight |
| Housing Color | Ivory |
| Housing Material | Composite |
| Surge Protection | Yes |
| GFCI | No |
| Contact Material | Brass |
| Minimum Operating Temperature | 32 deg F |
| Face Plate Height | 4.3 in |
| For Location | Indoor |
| Mount Type | Flush |
| Polarized | Yes |
| NEMA Receptacle Configuration | 5-20R |
| Current Rating | 20 A |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Response Time | 5 |
| Indicator(s) Type | LED Visual Status Indicator |
| Outlet | Straight Blade |
| Style | Smooth Face |
| Nema Rating | 5-20R |
| Operating Temperature | 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C) |
| Display Size | Standard |
| Frequency Rating | 60 Hz |
| Amperage Rating | 20 A |
| Series | Hospital Grade |
| Material - Mounting Hardware | Mounting Screws |
| Item Type | Smooth Face |
| Connectivity | Terminal Screws |
| Application | Quad-Plex |
| Voltage Rating Description | 125 V |
| Type | Four Outlet Receptacle |
| Current / Amperage Rating | 20 A |
| Length | 4.3 in |
| Wattage | 2500 W |
| Package Quantity | 1 |
