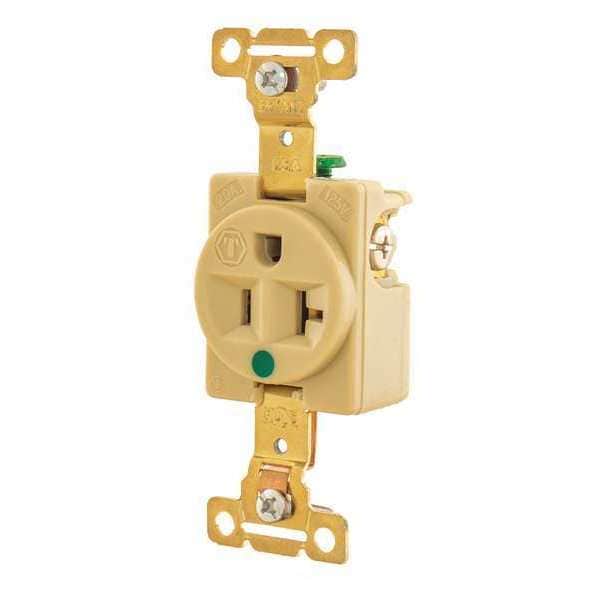

Receptacle, 20 A Amps, 125V AC, Flush Mount, Single Outlet, 5-20R, Ivory
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Hospital Grade |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Wiring Method | Back, Side |
| Sub-Category | Single Receptacles |
| Weather Resistant | No |
| Voltage | 125VAC |
| Material | Nylon |
| Standards | CSA Certified, UL Listed |
| Corrosion Resistant | No |
| Outlet Type | Single |
| Number of Gangs | 1 |
| Phase | Single |
| Mounting Type | Flush |
| Amps | 20 |
| HP | 1 hp |
| Color | Ivory |
| Current Rating | 20 A |
| Surge Protection | No |
| Mount Hole Center-to-Center Height | 3.3 in |
| Mount Type | Flush |
| Overall Depth | 0.9 in |
| Face Plate Height | 1.8 in |
| NEMA Receptacle Configuration | 5-20R |
| Flange Type | Non-Flanged |
| Includes Mounting Hardware | Yes |
| Wire Connection Type | Screw Terminals |
| Flange Diameter | Not Applicable |
| Face Plate Width | 1.4 in |
| Housing Material | Composite |
| Receptacle Type | Single |
| Polarized | Yes |
| Flange Height | Not Applicable |
| For Location | Indoor |
| Flange Width | Not Applicable |
| Maximum Wire Size | 12 AWG |
| Voltage Rating | 125V AC |
| Cover Type | No Cover |
| GFCI | No |
| Connection Orientation | Straight |
| Minimum Wire Size | 14 AWG |
| Contact Material | Copper |
| Market | Industrial |
| Grade | Hospital Grade |
| Includes | Mounting Hardware |
| Housing Color | Ivory |
| Horsepower Rating | 1 HP |
| Grounding | Grounded |
| AFCI | No |
| Voltage Rating Description | 125 V |
| Application | Hospital Grade |
| Package Quantity | 1 |
