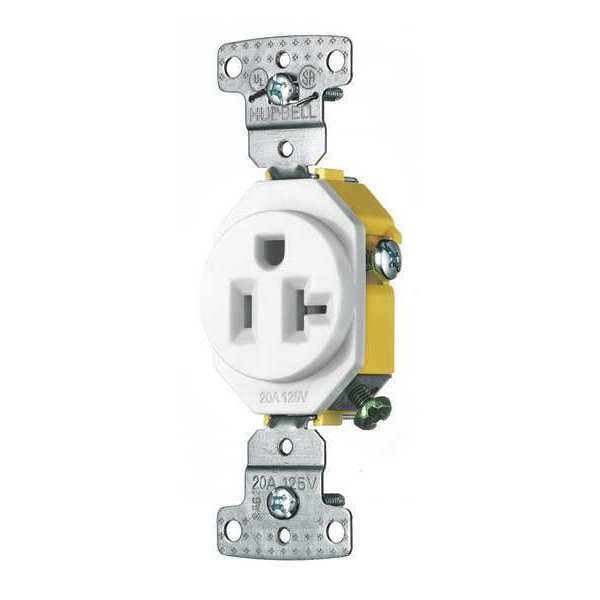

Receptacle, 20 A Amps, 125V AC, Flush Mount, Single Outlet, 5-20R, White
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | General Purpose |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | White |
| Wiring Method - Plugs and Receptacles | Side |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Number of Gangs | 1 |
| Material | Nylon |
| Standards | CSA Certified, UL Listed |
| Special Features | Corrosion resistant |
| Voltage | 125VAC |
| Corrosion Resistant | Yes |
| Sub-Category | Single Receptacles |
| Weather Resistant | No |
| Color | White |
| Phase | Single |
| Outlet Type | Single |
| HP | 1 hp |
| Wiring Method | Side |
| Mounting Type | Flush |
| Amps | 20 |
| Housing Color | White |
| Grade | General Use |
| Resistance Properties | Tamper Resistant |
| Cover Type | No Cover |
| Mount Type | Flush |
| Voltage Rating | 125V AC |
| Minimum Wire Size | 14 AWG |
| Grounding | Grounded |
| Polarized | Yes |
| Flange Type | Non-Flanged |
| Flange Height | Not Applicable |
| Includes | Mounting Hardware |
| Flange Diameter | Not Applicable |
| Overall Depth | 1.4 in |
| Market | Residential |
| Current Rating | 20 A |
| Maximum Wire Size | 12 AWG |
| Connection Orientation | Straight |
| NEMA Receptacle Configuration | 5-20R |
| Surge Protection | No |
| GFCI | No |
| Flange Width | Not Applicable |
| Wire Connection Type | Screw Terminals |
| For Location | Indoor |
| Receptacle Type | Single |
| AFCI | No |
| Mount Hole Center-to-Center Height | 3.3 in |
| Housing Material | Thermoplastic |
| Horsepower Rating | 1 HP |
| Face Plate Height | 0.9 in |
| Includes Mounting Hardware | Yes |
| Item Type | Single |
| Nema Rating | 5-20R |
| Performance | Environmental - Operating temperature - -20°C to 60°CMechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only |
| Material - Mounting Hardware | Screw Mounting |
| Application | Residential Receptacles |
| Wire Size | #12 AWG to #10 AWG |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Amperage Rating | 20 A |
| Display Size | Standard Sized Product |
| Wattage | 2500 |
| Connectivity | Side Wired |
| Features | Smooth indented face appearance; Multiple-drive Slot/Phillips/Robertson head screws; Tough thermoplastic ultrasonically welded cover and base |
| Package Quantity | 1 |
