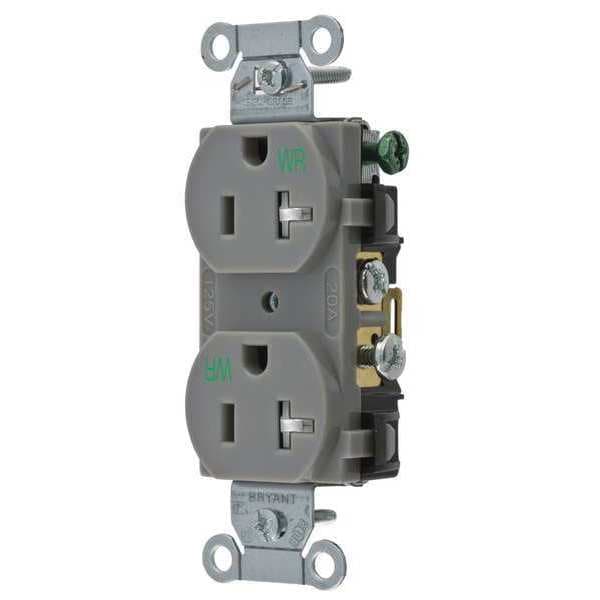

Receptacle, 20 A Amps, 125V AC, Flush Mount, Standard Duplex Outlet, 5-20R, Gray
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Commercial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Weather Resistant - Plugs and Receptacles | Yes |
| Color - Plugs and Receptacles | Gray |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Material | Nylon |
| Amps | 20 |
| Mounting Type | Flush |
| Sub-Category | Duplex Receptacles |
| Voltage | 125VAC |
| HP | 1 hp |
| Special Features | Corrosion resistant |
| Outlet Type | Duplex |
| Amps - Plugs and Receptacles | 20 |
| Corrosion Resistant | Yes |
| Wiring Method | Back, Side |
| Phase | Single |
| Weather Resistant | Yes |
| Color | Gray |
| Number of Gangs | 1 |
| Standards | CSA Certified, UL Listed |
| Surge Protection | No |
| GFCI | No |
| Horsepower Rating | 1 HP |
| Voltage Rating | 125V AC |
| Polarized | Yes |
| Cover Type | No Cover |
| Flange Type | Non-Flanged |
| Mount Type | Flush |
| AFCI | No |
| Grounding | Grounded |
| Market | Commercial |
| Housing Material | Nylon |
| Grade | General Use |
| Flange Width | Not Applicable |
| Flange Diameter | Not Applicable |
| Flange Height | Not Applicable |
| Wire Connection Type | Screw Terminals |
| Resistance Properties | Tamper Resistant |
| Connection Orientation | Straight |
| Receptacle Type | Duplex |
| Current Rating | 20 A |
| Housing Color | Gray |
| NEMA Receptacle Configuration | 5-20R |
| Style | Smooth Face |
| Current / Amperage Rating | 20 A |
| Series | Commercial |
| Voltage Rating Description | 125 V |
| Type | Duplex Receptacle |
| Nema Rating | 5-20R |
| Package Quantity | 1 |
