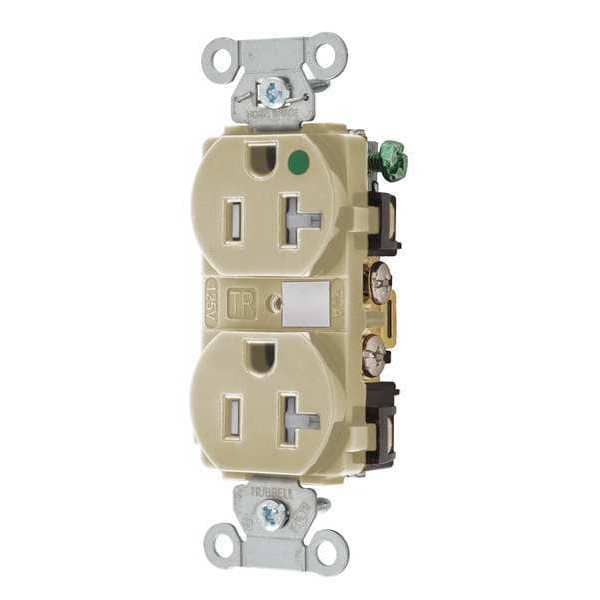

Contacto, 20 amperios, 125V AC, montaje al ras, toma de corriente dúplex estándar, 5-20R, marfil.
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Standard Duplex |
| Application Environment | Hospital Grade |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 20 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-20R |
| Surge Suppression | No |
| Tamper Resistant | Yes |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Ivory |
| Wiring Method - Plugs and Receptacles | Side, Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Sub-Category | Duplex Receptacles |
| Corrosion Resistant | Yes |
| Weather Resistant | No |
| Color | Ivory |
| Number of Gangs | 1 |
| HP | 1 hp |
| Voltage | 125VAC |
| Outlet Type | Duplex |
| Phase | Single |
| Wiring Method | Back, Side |
| Amps | 20 |
| Mounting Type | Flush |
| Material | Nylon |
| Standards | CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498 |
| Special Features | Corrosion resistant |
| GFCI | No |
| Flange Type | Non-Flanged |
| Flange Width | Not Applicable |
| Face Plate Width | 1.6 in |
| Flange Diameter | Not Applicable |
| NEMA Receptacle Configuration | 5-20R |
| Resistance Properties | Tamper Resistant |
| Maximum Operating Temperature | 167 deg F |
| Minimum Wire Size | 12 AWG |
| Mount Hole Center-to-Center Height | 3.3 in |
| Includes Mounting Hardware | Yes |
| Mount Type | Flush |
| Grounding | Grounded |
| UL 94 Flammability Rating | V-2 |
| Polarized | Yes |
| Surge Protection | No |
| Housing Material | Nylon |
| Flange Height | Not Applicable |
| Grade | Hospital Grade Fed. Spec. |
| Contact Material | Brass |
| Face Plate Height | 2.7 in |
| Includes | Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover |
| Wire Connection Type | Screw Terminals |
| Housing Color | Ivory |
| Maximum Wire Size | 10 AWG |
| AFCI | No |
| Minimum Operating Temperature | -40 deg F |
| Overall Depth | 1.2 in |
| Current Rating | 20 A |
| Cover Type | No Cover |
| Receptacle Type | Duplex |
| Connection Orientation | Straight |
| Voltage Rating | 125V AC |
| Horsepower Rating | 1 HP |
| Package Quantity | 1 |
