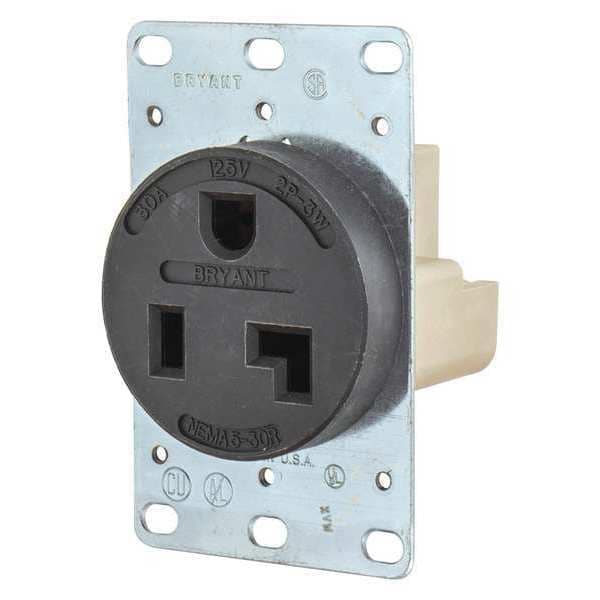

Receptáculo, 30 amperios, 125V CA, montaje al ras, salida individual, 5-30R, negro.
| Item - Plugs and Receptacles | Receptacle |
|---|---|
| Item | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 30 A |
| Voltage - Plugs and Receptacles | 125V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 5-30R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Back |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Power Indicator | No |
| Outlet Type | Single |
| Corrosion Resistant | No |
| Mounting Type | Flush |
| Material | Thermoplastic Polymer |
| Amps - Plugs and Receptacles | 30 |
| Weather Resistant | No |
| Voltage | 125VAC |
| Sub-Category | Single Receptacles |
| HP | 2 hp |
| NEMA Configuration | 5-30 |
| Phase | Single |
| Wiring Method | Back |
| Number of Gangs | 1 |
| Standards | CSA Certified, UL Listed |
| Color | Black |
| Amps | 30 |
| Minimum Wire Size | 10 AWG |
| Flange Type | Non-Flanged |
| Market | Commercial, Industrial |
| Cover Type | No Cover |
| Flange Width | Not Applicable |
| Overall Depth | 2.3 in |
| Surge Protection | No |
| GFCI | No |
| Flange Height | Not Applicable |
| Flange Diameter | Not Applicable |
| Current Rating | 30 A |
| Maximum Wire Size | 6 AWG |
| Face Plate Width | 2.3 in |
| Grade | General Use |
| Includes Mounting Hardware | Yes |
| Includes | Mounting Hardware |
| Wire Connection Type | Screw Terminals |
| AFCI | No |
| Horsepower Rating | 2 HP |
| Housing Material | Thermoplastic |
| Mount Type | Flush |
| NEMA Receptacle Configuration | 5-30R |
| Grounding | Grounded |
| Voltage Rating | 125V AC |
| Housing Color | Black |
| Polarized | Yes |
| Connection Orientation | Straight |
| Receptacle Type | Single |
| Face Plate Height | 3.7 in |
| For Location | Indoor |
| Resistance Properties | Impact Resistant |
| Display Size | Standard Sized Product |
| Style | Smooth Face |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Application | Industrial Grade |
| Amperage Rating | 30 A |
| Nema Rating | 5-30R |
| Connectivity | Pressure Terminal Screws |
| Type | Single Receptacle |
| Material - Mounting Hardware | Screw Mounting |
| Wattage | 3750 |
| Current / Amperage Rating | 30 A |
| Voltage Rating Description | 125 V |
| Series | Heavy Duty |
| Item Type | Single |
| Wire Size | #10 AWG to #6 AWG |
| Package Quantity | 1 |
