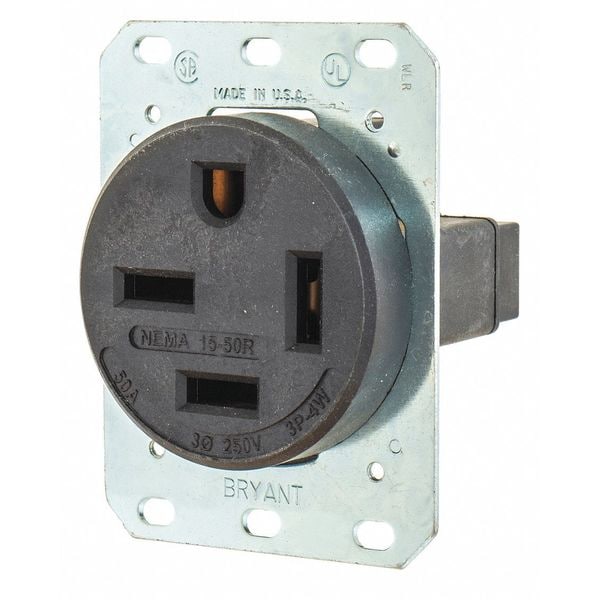

Receptáculo, 50 Amperios, 250V AC, Montaje al Ras, Salida Individual, 15-50R, Negro
| Item | Receptacle |
|---|---|
| Item - Plugs and Receptacles | Receptacle |
| Outlet Type - Plugs and Receptacles | Single |
| Application Environment | Industrial |
| Mounting Type - Plugs and Receptacles | Flush |
| Amps - Plugs and Receptacles | 50 A |
| Voltage - Plugs and Receptacles | 250V AC |
| NEMA Receptacle Configuration - Plugs and Receptacles | 15-50R |
| Surge Suppression | No |
| Tamper Resistant | No |
| Weather Resistant - Plugs and Receptacles | No |
| Color - Plugs and Receptacles | Black |
| Wiring Method - Plugs and Receptacles | Back |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Power Indicator | No |
| Phase | Three |
| Corrosion Resistant | No |
| Outlet Type | Single |
| Amps - Plugs and Receptacles | 50 |
| HP | 7 1/2 hp |
| Standards | CSA Certified, UL Listed |
| Wiring Method | Back |
| Material | Thermoplastic Polymer |
| Voltage | 250VAC |
| Weather Resistant | No |
| Sub-Category | Single Receptacles |
| Color | Black |
| Mounting Type | Flush |
| Amps | 50 |
| Number of Gangs | 1 |
| For Location | Indoor |
| Wire Connection Type | Screw Terminals |
| Flange Height | Not Applicable |
| Includes Mounting Hardware | Yes |
| Grounding | Grounded |
| Surge Protection | No |
| Resistance Properties | Heat Resistant |
| AFCI | No |
| Horsepower Rating | 7.5 HP |
| Housing Material | Composite |
| NEMA Receptacle Configuration | 15-50R |
| Minimum Wire Size | 10 AWG |
| Current Rating | 50 A |
| Polarized | Yes |
| Maximum Wire Size | 6 AWG |
| Housing Color | Black |
| Flange Type | Non-Flanged |
| GFCI | No |
| Flange Diameter | Not Applicable |
| Market | Industrial |
| Includes | Mounting Hardware |
| Cover Type | No Cover |
| Receptacle Type | Single |
| Mount Type | Flush |
| Flange Width | Not Applicable |
| Grade | General Use |
| Voltage Rating | 250V AC |
| Connection Orientation | Straight |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Nema Rating | 15-50R |
| Material - Mounting Hardware | Screw Mounting |
| Wattage | 12500 |
| Item Type | Single |
| Connectivity | Pressure Terminal Screws |
| Amperage Rating | 50 A |
| Wire Size | #10 AWG to #6 AWG |
| Display Size | Standard Sized Product |
| Application | Industrial Grade |
| Package Quantity | 1 |
